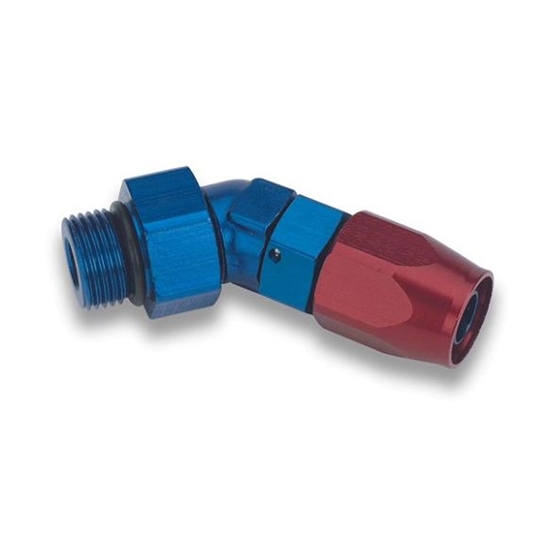

Earls 844586ERL 45 Degree -8 AN Hose to -6 AN O-Ring Male Hose End
Discontinued
This item is currently not available
Shop all AN Hose Ends
Product Summary
Universal Fit, -8 AN Fitting Hose Size, 45 degree Angle
See more details
Key Specs
| Fitting Hose Size | -8 AN |
| Angle | 45 degree |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Blue |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEarls 844586ERL Details
Earls 844586ERL Details
This unique line of hose ends has been developed to allow the hose end to be threaded directly into a female port without the bulk and complication of an adapter fitting. In all cases the coupler can be rotated independently of the hose end, this allows the coupler to be threaded into the part while the hose and hose end are held stationary.
- Stainless Retention Pins Allow 360° Adjustment After Installation
- Fitting Side Seals on O-ring
- Dual Plane Anti-Seepage Seal
- Precision Machined
- Low Progile Design
- Nipple and Cutter Design Assures Leak Free Performance
- Aerospace Proven Design & Materials
Charts
Guides & Documents
Earls 844586ERL Specifications
Earls 844586ERL Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 844586ERL |
| Brand | Earls |
| Fitting Hose Size | -8 AN |
| Angle | 45 degree |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Blue |
| GENERAL | |
| Fitting Style | Swivel |
| Fitting End A | -6 AN Male o-ring |
| Fitting End B | -8 AN Hose |
| Reusable | Yes |
| Hose Style | Earl's Perform-O-Flex, Pro-Lite 350, Pro-Lite Ultra & Auto-Flex |
| GTIN Code | 021432432139 |
| Sold in Quantity | Each |
