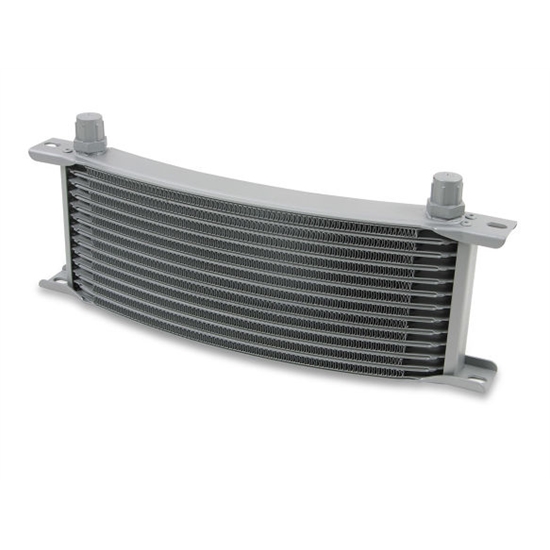

Earls 71006ERL Gray -6 AN 10 Row Oil Cooler Core, Narrow
Earls 71006ERL Gray -6 AN 10 Row Oil Cooler Core, Narrow

Earls 71006ERL Gray -6 AN 10 Row Oil Cooler Core, Narrow

Universal Fit, 11.562" Overall Width, 3.05" Overall Height, 1.25" Overall Thickness, Aluminum

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Earls 71006ERL Gray -6 AN 10 Row Oil Cooler Core, Narrow
Earls 71006ERL Gray -6 AN 10 Row Oil Cooler Core, Narrow
Earls 71006ERL Gray -6 AN 10 Row Oil Cooler Core, Narrow
X
Earls 71006ERL Gray -6 AN 10 Row Oil Cooler Core, Narrow
Zoomed In Image
We estimate this item will ship on or before October 30th.
Part # 42571006ERL
$146.95
$148.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

GTIN Code:
090127655160
MFG. Part #:
71006ERL
Overall Width:
11.562"
Overall Height:
3.05"
Overall Thickness:
1.25"
Core Width:
8"
Inlet Fitting:
AN 6 Male
Outlet Fitting:
AN 6 Male
Row Quantity:
10
Material Type:
Aluminum
Color:
Gray
Center to Center:
9.05"

Info

Earl's curved coolers are constructed with the same high grade aluminum and the same internal design as our standard 2" coolers, but have a curved design to fit neatly between the down tubes of the frame of a motorcycle for maximum heat dissipation. The curved design allows for full wheel travel no matter where it is mounted on the front of the frame. These coolers are only 1-1/4" thick and are available in two widths, three different heights and male -6 or -8 inlet and outlet fittings.

  • Manufactured in the U.S.A from aircraft spec aluminum alloy, using the latest vacuum brazing technology.
  • Corrugated screen internal turbulator plates increase both thermal efficiency and mechanical strength resulting in the most efficient, smallest and lightest practical package.
  • Manufactured from thin aluminum plates for the fastest possible heat transfer.
  • Inlet and outlet fittings o-ring to the top plate assembly.
  • Designed for the range of oil flows and air speeds encountered in high performance motorcycles.
  • Available in two widths with inlet and outlet fittings male AN.
  • Every cooler is pressure checked to 175 psi. Periodic samples are burst tested to 350 psi.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Earls to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
