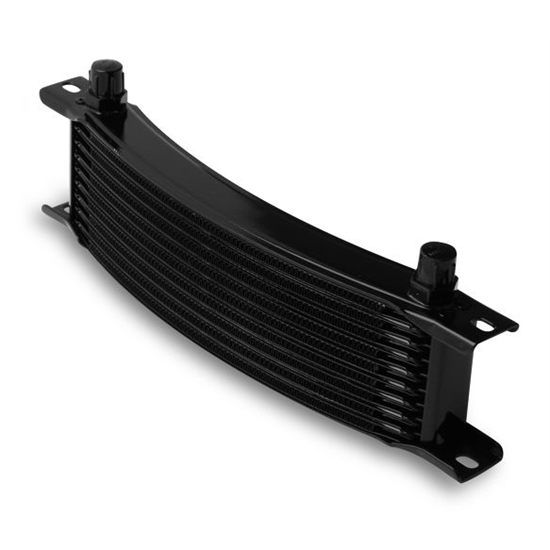

Earls 71006AERL Black -6 AN 10 Row Oil Cooler Core, Narrow
Earls 71006AERL Black -6 AN 10 Row Oil Cooler Core, Narrow

Earls 71006AERL Black -6 AN 10 Row Oil Cooler Core, Narrow

Universal Fit, 11.562" Overall Width, 3.05" Overall Height, 1.25" Overall Thickness, Aluminum

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Earls 71006AERL Black -6 AN 10 Row Oil Cooler Core, Narrow
Earls 71006AERL Black -6 AN 10 Row Oil Cooler Core, Narrow
Zoomed In Image
We estimate this item will ship on or before June 11th.
Part # 42571006AERL
$129.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Earls Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

GTIN Code:
090127655184
MFG. Part #:
71006AERL
Overall Width:
11.562"
Overall Height:
3.05"
Overall Thickness:
1.25"
Core Width:
8"
Inlet Fitting:
AN 6 Male
Outlet Fitting:
AN 6 Male
Row Quantity:
10
Material Type:
Aluminum
Color:
Black
Center to Center:
9.05"

Info

Earl's curved coolers are constructed with the same high grade aluminum and the same internal design as our standard 2" coolers, but have a curved design to fit neatly between the down tubes of the frame of a motorcycle for maximum heat dissipation. The curved design allows for full wheel travel no matter where it is mounted on the front of the frame. These coolers are only 1-1/4" thick and are available in two widths, three different heights and male -6 or -8 inlet and outlet fittings.

  • Manufactured in the U.S.A from aircraft spec aluminum alloy, using the latest vacuum brazing technology.
  • Corrugated screen internal turbulator plates increase both thermal efficiency and mechanical strength resulting in the most efficient, smallest and lightest practical package.
  • Manufactured from thin aluminum plates for the fastest possible heat transfer.
  • Inlet and outlet fittings o-ring to the top plate assembly.
  • Designed for the range of oil flows and air speeds encountered in high performance motorcycles.
  • Available in two widths with inlet and outlet fittings male AN.
  • Every cooler is pressure checked to 175 psi. Periodic samples are burst tested to 350 psi.
Some parts are not legal for use in California or other states with similar laws/regulations
