#425680416ERL

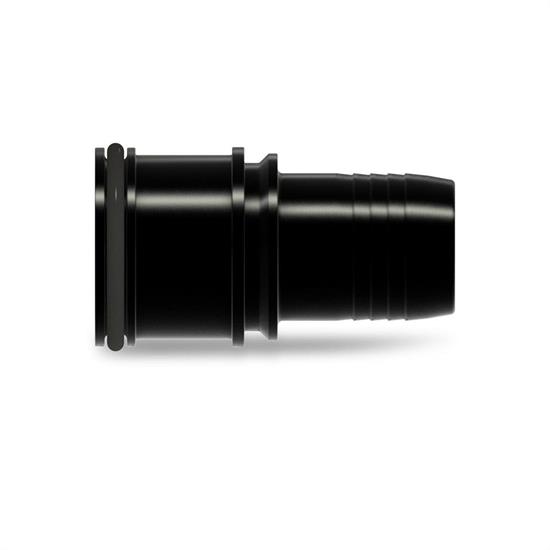

Earls 680416ERL Straight Male Wiggins Crimp On Hose End
Discontinued
This item is currently not available
Shop all AN Hose Ends
Product Summary
Universal Fit, -16 AN Fitting Hose Size, Straight Angle
See more details
Key Specs
| Fitting Hose Size | -16 AN |
| Angle | Straight |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Black |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEarls 680416ERL Details
Earls 680416ERL Details
Earl’s UltraPro Series hose-ends are manufactured from premium materials to be light weight and rugged and are perfectly matched to Earl’s UltraPro Series hose. Earl’s UltraPro Series hose-ends feature ultra high-strength 2024-T8 aluminum in high-stress components, and ?uoroelastomer internal seals which are chemically resistant to all known fuels, oils, and coolants. They feature brazed bent tubes for unmatched strength and all unnecessary weight has been eliminated from Ultra-Pro components.
-16 AN Straight Male Wiggins Crimp-On Hose End
- Available Dynamic Swivel technology used in selected hose-ends allows 360 degrees of rotation of installed line after installation!
- Internal seals are a ?uoroelastomer material which is resistant to all known fuel, oil and coolant!
- Bent tube design for unmatched strength and ?ow!
- UltraPro bent tube hose-ends are furnace-brazed for a permanent and robust bond!
- Designed to withstand harsh environments, brutal vibration, high ?ow requirements and extreme pressures!
- Black Anodized
- Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends!
- High stress components are made of high-strength 2024-T8 grade aluminum instead of 6061-T6 aluminum used by competitors!
- Available in Twist-on and Crimp-on styles for more plumbing options at home or at the track!
- SAE port, jump size, and Wiggins connector adapter/hose-ends available
- Straight, 30º, 45º, 60º, 90º, 120º, 150º, and 180º angles available
Charts
Guides & Documents
Earls 680416ERL Specifications
Earls 680416ERL Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 680416ERL |
| Brand | Earls |
| Fitting Hose Size | -16 AN |
| Angle | Straight |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Black |
| GENERAL | |
| Fitting Style | Non-Swivel |
| Assembly Method | Crimp |
| Fitting End A | Wiggins Male |
| Fitting End B | -16 AN Hose |
| Reusable | No |
| Hose Style | Earl's UltraPro Hose |
| GTIN Code | 090127737606 |
| Sold in Quantity | Each |
