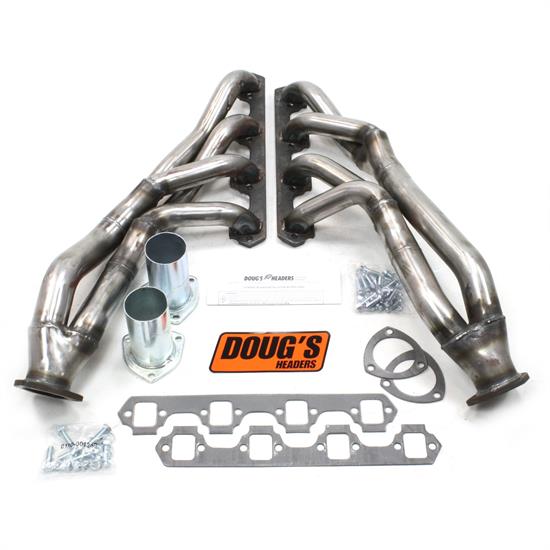

Doug's Headers D690YA-R Tri-Y Header, 1-5/8 In, 64-70 Mustang, Raw
Details
Info
Doug's PASSENGER CAR HEADERS Raw SteelHeader development and design is complex and requires a substantial amount of time and resources to do the job right! Many manufacturers are unwilling to make the commitment and instead offer compromised headers at lower prices. Doug's will not compromise performance, quality or fit to compete with inferior designs at cheap prices. Every Doug's header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Doug's headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.
- 3/8" Thick machined flanges...no warping
- CNC mandrel bent tubes... accurate fit & better flow
- Tri-Y headers yield maximum power from off idle to 4500 RPM making them well suited for applications demanding maximum mid-range torque with maximum fuel economy
- Heavy 16 gauge tubing...longer life
- Tubes are pre-polished to remove scratches and the header is left unfinished (raw steel) for individual customizing
Application
1964-1965 Ford Mustang 4.3L/260 V81964-1968 Ford Mustang 4.7L/289 V8
1968-1970 Ford Mustang 5L/302 V8
Notes
- Doug's Headers D690YA-R 1 5/8" Tri-Y Header Ford Mustang Small Block Ford 64-70 Raw Steel
- Tri-Y Design - Raw Steel
- Collector: 2 1/2
- Port: SAP
- Primary: 1 5/8 - 2
- exc. states w/Calif. emission stds
- Use power steering bracket H7609
- Use C5ZZ16A052E brace if shock mount center to center is less than 33 3/4 in
- w/o air inj. cyl. heads
- with A/C
- For Off-Road Use Only
Important Messages
- This product is discontinued.
- This item ships directly from the manufacturer. It may take an additional business days for Dougs Headers to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
- This item 447D690YAR is made to order. It will be shipped from our warehouse when it is produced.
