Product Summary

273, 340, 360, Full-length Header Tube Type, Raw, Steel

  • Headers are specifically designed for the 62-72 Mopar vehicles
  • Features 3/8" thick machined flanges that will not warp
  • Has CNC mandrel bent tubes for a more accurate fit & better flow
  • The precision formed long transition collectors and long tube design reduces backpressure and increases higher RPM horsepower
  • The tubes are pre-polished to remove scratches and the header is left unfinished (raw steel) for individual customizing

Key Specs

MFG. Part #D453-R
BrandDougs Headers
Header Tube TypeFull-length
FinishRaw
Material TypeSteel

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

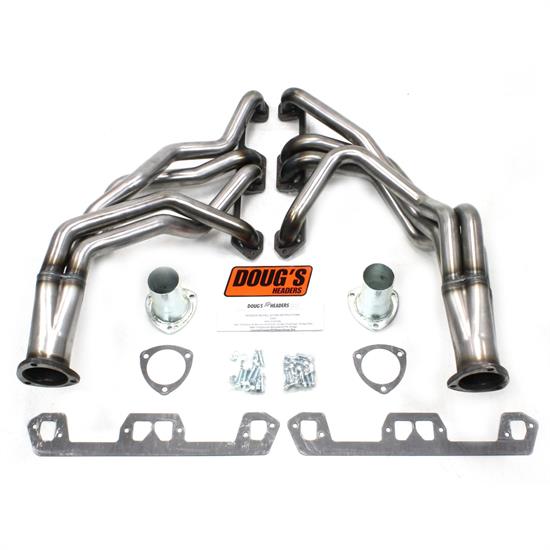

Raw Dodge Challenger (70-74) 273-360 Engine, Charger, R/T (66-72) 273-360 Engine, Coronet, Coronet Wagons (62-72) 273-360 Engine, Dart (67-72) 273-360 Engine, Demon (70-72) 273-360 Engine, Super Bee (68-72) 273-360 Engine, Plymouth Barracuda (67-74) 273-360 Engine, Belvedere (66-72) 273-360 Engine, Duster (70-72) 273-360 Engine, GTX (66-72) 273-360 Engine, Valiant (67-72) 273-360 The Dougs Header you have chosen is raw, not Metallic Ceramic Thermal Barrier Coated (MCTBC) which is the standard finish on all Dougs Headers. The picture you see is the same header with MCTBC which protects and extends the life of headers by creating a thermal barrier that significantly lowers underhood temperatures and protects the substrate metal from thermal fatigue. It also provide corrosion resistance to protect it for years to come.

Please see our online catalog for specific application information.

Every Dougs header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Dougs headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.Every Dougs header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Dougs headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.

  • 3/8" Thick machined flanges...no warping
  • CNC mandrel bent tubes... accurate fit & better flow
  • Precision formed long transition collectors and long tube design... reduces backpressure and increases higher RPM horsepower
  • Heavy 16 gauge tubing...longer life
  • Tubes are pre-polished to remove scratches and the header is left unfinished (raw steel) for individual customizing
  • Doug's Headers D453-R 1 5/8" 4-Tube Full Length Header Mopar A Body Small Block Mopar 67-72 Raw Steel
  • Raw Steel
  • Collector: 3
  • Port Shape: SAP
  • Primary Tube: 1 5/8
  • emissions code: legal only for off-highway use (except in California or states that have adopted California emission standards)
  • Fits with Mopar mini-starter part PN P5249644AB
  • with A/C
  • with Column Shift
  • with Floor shifter
  • Doug's Headers D453-R 1 5/8" 4-Tube Full Length Header Mopar A Body Small Block Mopar 67-72 Raw Steel
  • Raw Steel
  • Collector: 3
  • Port Shape: SAP
  • Primary Tube: 1 5/8
  • emissions code: legal only for off-highway use (except in California or states that have adopted California emission standards)
  • Fits with Mopar mini-starter part PN P5249644AB
  • with A/C
  • with Column Shift
  • with Floor shifter

Application

1971-1974 Dodge Challenger 5.2L/318 V8
1970-1973 Dodge Challenger 5.6L/340 V8
1972-1973 Dodge Challenger 5.9L/360 V8
1966-1972 Dodge Charger 5.2L/318 V8
1970-1972 Dodge Charger 5.6L/340 V8
1971-1972 Dodge Charger 5.9L/360 V8
1965-1968 Dodge Coronet 4.5L/273 V8
1966-1974 Dodge Coronet 5.2L/318 V8
1970-1972 Dodge Coronet 5.6L/340 V8
1971-1974 Dodge Coronet 5.9L/360 V8
1967-1969 Dodge Dart 4.5L/273 V8
1967-1972 Dodge Dart 5.2L/318 V8
1968-1972 Dodge Dart 5.6L/340 V8
1971-1972 Dodge Dart 5.9L/360 V8
1967 Plymouth Barracuda 4.5L/273 V8
1968-1974 Plymouth Barracuda 5.2L/318 V8
1968-1973 Plymouth Barracuda 5.6L/340 V8
1971-1974 Plymouth Barracuda 5.9L/360 V8
1964-1968 Plymouth Belvedere 4.5L/273 V8
1962-1970 Plymouth Belvedere 5.2L/318 V8
1971 Plymouth Belvedere 5.6L/340 V8
1970-1971 Plymouth Duster 5.2L/318 V8
1970-1972 Plymouth Duster 5.6L/340 V8
1971 Plymouth Fury II 5.2L/318 V8
1967 Plymouth GTX 4.5L/273 V8
1967-1970 Plymouth GTX 5.2L/318 V8
1967-1969 Plymouth Valiant 4.5L/273 V8
1968-1972 Plymouth Valiant 5.2L/318 V8
1968-1972 Plymouth Valiant 5.6L/340 V8
1971-1972 Plymouth Valiant 5.9L/360 V8

Guides & Documents

CARB Warning

For use on pre-1966 vehicles only

Emissions warning: this part only legal for sale or use in California if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. ++any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering there are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #D453-R
BrandDougs Headers
Header Tube TypeFull-length
FinishRaw
Material TypeSteel
GENERAL
Flange StyleStandard
Primary Tube Diameter1-5/8"
ColorNatural
Weld-UpNo
Exhaust Port ShapeRectangle
Collector Diameter3 Inch
Hardware IncludedYes
Gasket(s) IncludedYes
Sold in QuantityPair
GTIN Code694342509736
Collector Reducers IncludedYes
Bolts Studs IncludedYes
Gaskets IncludedYes
