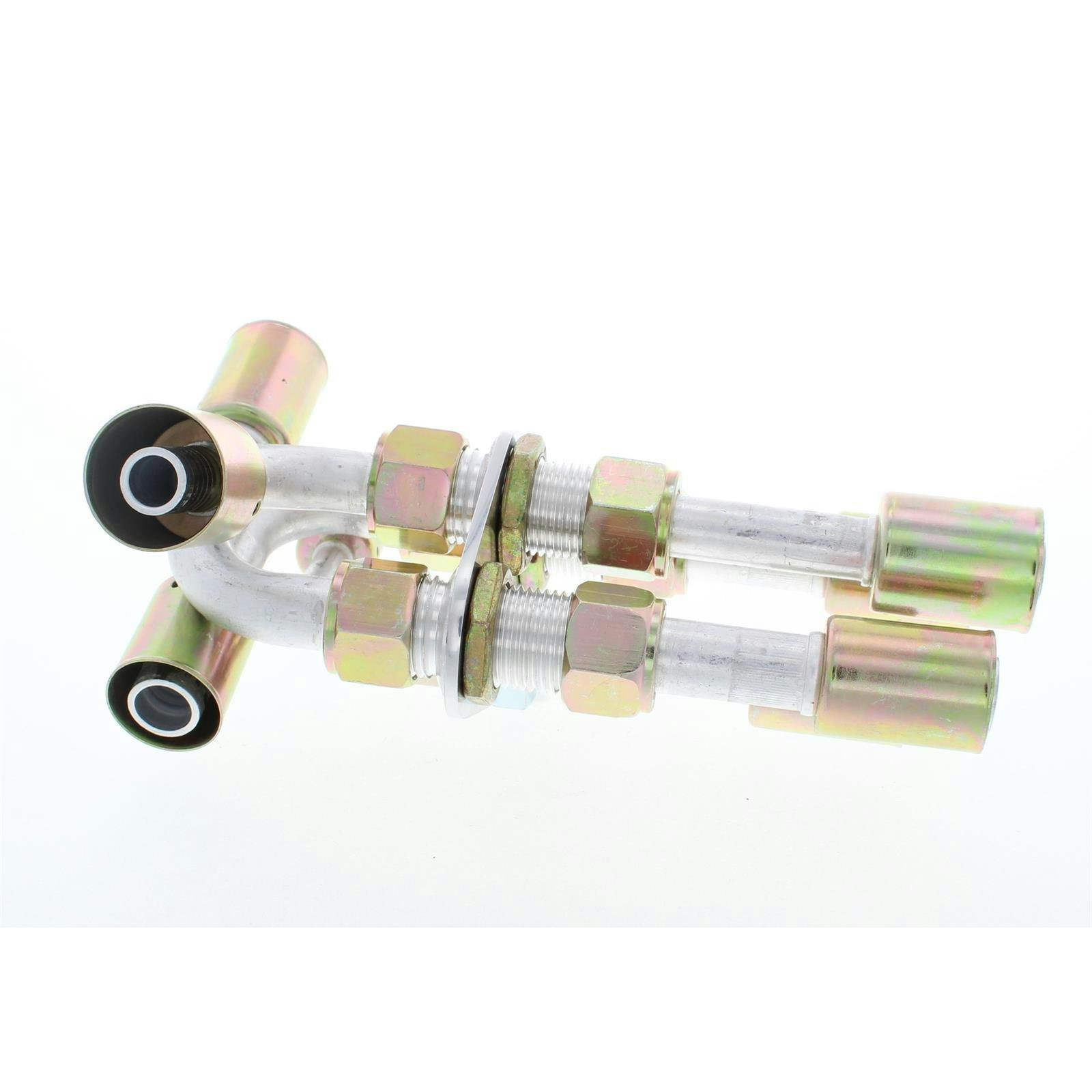

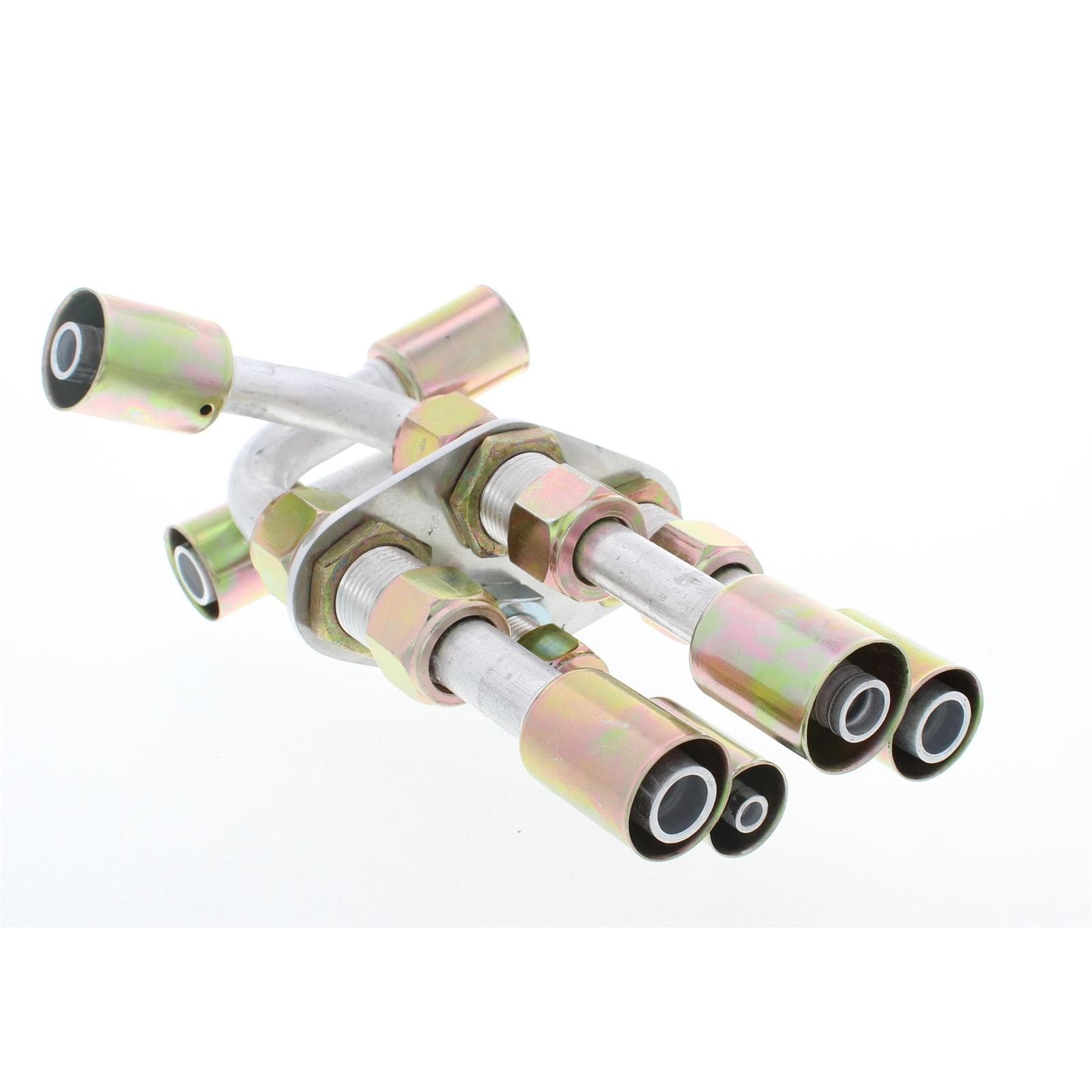

Diamond A/C Bulkhead Plates with Fittings
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
When you have to run air conditioning and heater hoses through your firewall, the only way to make it look good is to use bulkhead plates. We make it easy for you to order because we include the four heater hose fittings and two a/c hose fittings required to finish the job.
- (1) straight fitting for -6 A/C hose
- (1) 90° fitting for -6 A/C hose
- (1) straight fitting for -10 A/C hose
- (1) 90° fitting for -10 A/C hose
- (2) straight fittings for 5/8" heater hose
- (2) 90° fittings for 5/8" heater hose
- (1) bulkhead plate, 2-1/2" x 4-1/2"
You will need to have the fittings crimped on the hoses by your local shop.
NotesPlease note that -6 AC fittings have a 5/8" x 18 TPI size and -10 AC fittings have a 7/8" x 14 TPI size.
SpecsThese use 5/8" hose and 3/8" hose. The O.D. of the tube is .620 for the 5/8 and .312 for the 3/8 hose.
