$869.99
Dewitts 4139013M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Dewitts 4139013M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual

Dewitts 4139013M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual

55-57 Bel Air, 55-57 One-Fifty Series, 55-57 Two-Ten Series, 1957 Del Ray, Aluminum, Natural

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Dewitts 4139013M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Dewitts 4139013M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Zoomed In Image
We estimate this item will ship on or before May 31st.
Part # 1334139013M
$869.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for DeWitts to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Material Type:
Aluminum
Inlet Location:
Centered
Outlet Location:
Lower Right
Row Quantity:
2
Overall Width Range:
22.00" to 22.99"
Overall Width:
22"
Overall Height Range:
21.00" to 21.99"
Overall Height:
21.25"
Overall Thickness:
5.5"
Core Width Range:
25.00" to 25.99"
Core Width:
25.25"
Core Height Range:
16.00" to 16.99"
Core Height:
16.5"
Core Thickness:
2.25"
Finish:
Natural
Cooling Fan:
Single
Transmission Cooler:
No
Inlet Size:
1.5"
Outlet Size:
1.5"
Tube Size:
1"
Tube Style:
Downflow
Sold in Quantity:
Each
Notes:
Electric fan has 22.0 amp draw.
Fan Included:
Yes
Radiator Cap Included:
No
Fan Diameter:
16 Inch
CFM:
2360 CFM
Blade Material:
Plastic
Shroud Color:
Natural
Shroud Material:
aluminum

Info

The superior quality of a Dewitts radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts is the only USA aftermarket radiator company to own an aluminum Nocolok® brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you’re still not sure if that’s enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity. Every DeWitts Aluminum radiator is designed to fit the listed application without any modifications to your car and is available in your choice of a natural, Black Ice™ or polished finish.

Black Ice™ is a special two part epoxy paint. It is applied in a spray and it adheres to the aluminum and will never flake or peel off. The semi-gloss finish gives any radiator the look of an original copper/brass unit. The total thickness of the dried product is only .005” thick and it will not affect cooling performance.

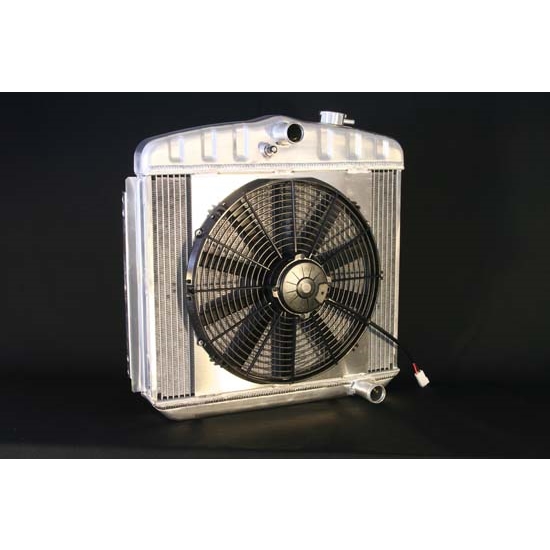

This fan/radiator combo consists of a Direct Fit aluminum radiator and a 16" (2360 cfm) Spal electric fan with temperature switch and harness.

  • Direct fit with no modification
  • Epoxy free, aluminum, dual row core
  • 1" tubes
  • Press formed end tanks
  • Assembled and brazed in Howell, MI
