Deluxe 1923 T-Bucket Frame Kit w/ Standard Body and Bed, Flat Floor

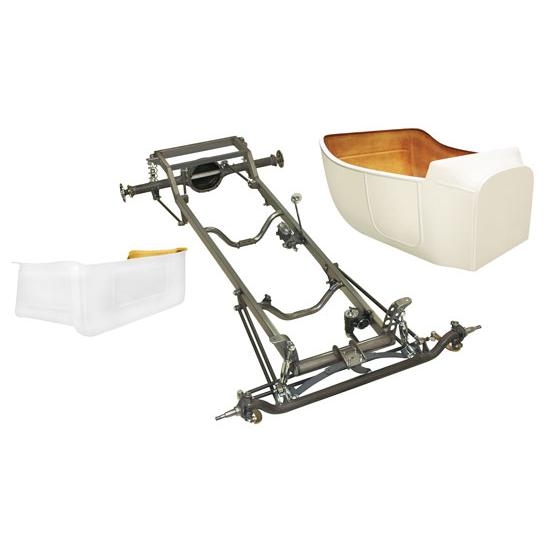

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.
All of our T kits are also available with chrome suspension. This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.
This product requires a 3-4 week build time.
Item DetailsBody 715-2252
Installation TipsFrame Assembly
- 1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
- 3" O.D. round tube front crossmember
- Spring-behind front suspension with 4" drop tube axle
- Urethane-bushed front four bars and panhard bar
- Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
- Combination headlight and front shock mounts
- Innovative triangulated four-bar rear suspension with urethane bushings and coilover shocks
- Cross steering with Vega steering box
- Frame assembly include: front spring, axle, spindles, and panhard bar; rear coilover shocks and panhard bar; front and rear four bars with urethane bushings; Vega steering box; master cylinder, bracket and pedal
- Available with plain or chrome suspension components
- Rugged 1-piece fiberglass body
- Flat, smooth firewall
- Molded-in flat dash
- Body lip around top edge to attach upholstery
- One-piece 20" T pickup bed
- Available with an un-channeled floor
- Body Dimensions
- Total Length: 52"
- Firewall Width: 26.5"
- Body Width: 45"
- Body Height: 24"
Chassis Exploded View (JPG)
- This item 7152411 is made to order. It will be shipped from our warehouse when it is produced.
