Product Summary

Single Pass Radiator Style, Aluminum, 2 Row Quantity

    Key Specs

    MFG. Part #32-4139066M
    Radiator StyleSingle Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy


    The superior quality of a DeWitts® radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts® is the only USA aftermarket radiator company to own an aluminum Nocolok® brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts® radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts® double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you’re still not sure if that’s enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity. Every DeWitts® Aluminum radiator is designed to fit the listed application without any modifications to your car and is available in your choice of a natural, Black Ice™ or polished finish.

    Black Ice™ is a special two part epoxy paint. It is applied in a spray and it adheres to the aluminum and will never flake or peel off. The semi-gloss finish gives any radiator the look of an original copper/brass unit. The total thickness of the dried product is only .005” thick and it will not affect cooling performance.

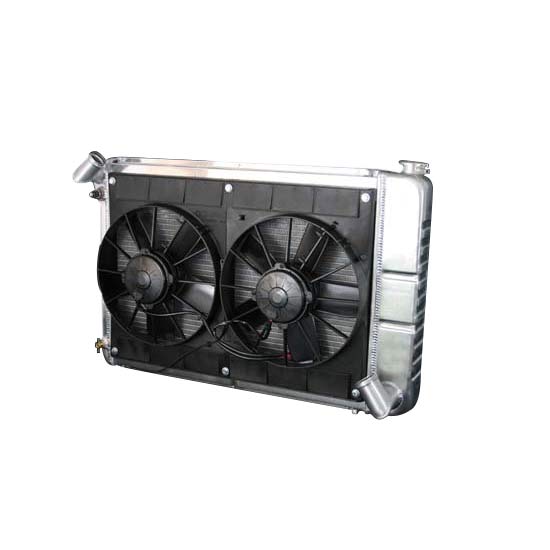

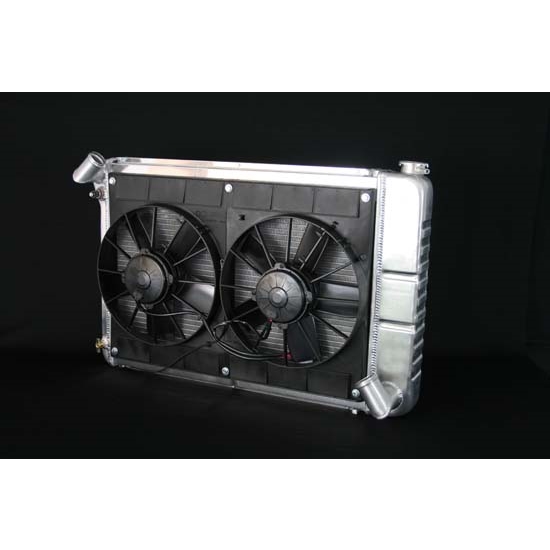

    This fan/radiator combo consists of a Direct Fit® aluminum radiator and dual 11" (2780 cfm) Spal electric fans with temperature switch and harness.

    • Direct Fit® with no modification
    • Epoxy free, aluminum, dual row core
    • 1" tubes
    • Press formed end tanks
    • Assembled and brazed in Howell, MI



    MFG. Part #32-4139066M
    Radiator StyleSingle Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    Inlet LocationUpper driver side
    Outlet LocationLower passenger side
    Row Quantity2
    Tube Size1.00"
    Overall Width Range27.00" to 27.99"
    Overall Width27.5"
    Overall Height Range18.00" to 18.99"
    Overall Height18.5"
    Overall Thickness6.75"
    Core Width Range23.00" to 23.99"
    Core Width23.5"
    Core Height Range18.00" to 18.99"
    Core Height18.5"
    Core Thickness1.75"
    Cooling FanDual
    Transmission CoolerNo
    Shroud IncludedYes
    Inlet Size1.50
    Outlet Size1.75
    Amperage26 amps
    Fan IncludedYes
    Radiator Cap IncludedNo
    Fan Diameter11 Inch
    CFM2780 CFM
    Blade MaterialPlastic
    Shroud ColorNatural
    Shroud MaterialAluminum
    CFM Range2,700-2,799 CFM
    NotesElectric fan has 26.0 amp rating.
    Sold in QuantityEach
