Part # 1334139063M

DeWitts® 4139063M 1963-72 Corvette Radiator Fan Combo, Manual

by

|

  • DeWitts® radiators are 100% engineered and manufactured in the USA, backed with a lifetime warranty
  • Direct Fit® assures easy installation, with SPAL 2360 cfm electric fan and shroud for maximum efficiency
  • Aluminum construction is half the weight and provides a 4100 BTU rating which is 25% better than a copper unit

$949.99

each

In Stock

Order soon, only 3 left in stock!


Quantity

Select a vehicle to verify Fitment

Product Summary

63-72 Chevy Corvette, Single Pass Radiator Style

  • DeWitts® radiators are 100% engineered and manufactured in the USA, backed with a lifetime warranty
  • Direct Fit® assures easy installation, with SPAL 2360 cfm electric fan and shroud for maximum efficiency
  • Aluminum construction is half the weight and provides a 4100 BTU rating which is 25% better than a copper unit
  • Two-row, 1” wide tube core with factory design inlet and outlet allowing original hose routing
  • Fits 69-72 models with ZQ3 small block engine with no options; factory shroud mates to this assembly and clears the fan for continued use

Key Specs

MFG. Part #32-4139063M
Radiator StyleSingle Pass
Radiator Flow DirectionCrossflow
Material TypeAluminum
FinishNatural

Need To Know

This Product Will Ship Free

Need help? Call 800.979.0122

Quick and Easy Returns

Details

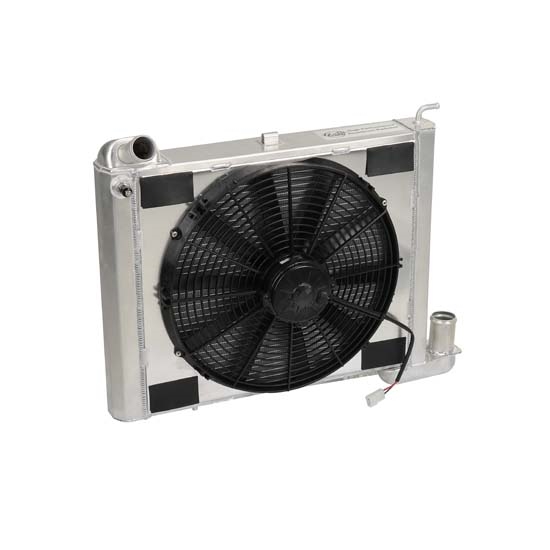

This DeWitts® Pro-series aluminum radiator includes the Spal 2360 cfm fan and shroud. The fan is mounted directly to the radiator with a full coverage aluminum shroud. This package is designed to eliminate the factory engine driven fan and shroud. The factory shroud will fit over the electric fan if you prefer to keep it in place. The kit includes one wire harness and temperature switch.

  • Direct Fit® with no modification
  • Epoxy free, aluminum, dual row core, 1" tubes
  • Press formed end tanks
  • Spal 2360 cfm fan 21.6 amps
  • Aluminum fan shroud
  • Includes wiring harness and temperature switch
  • Assembled and brazed in Howell, MI

The superior quality of a DeWitts® radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts® is the only USA aftermarket radiator company to own an aluminum Nocolok® brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts® radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car.

Warranties

Specifications

KEY SPECS
MFG. Part #32-4139063M
BrandDeWitts
Radiator StyleSingle Pass
Radiator Flow DirectionCrossflow
Material TypeAluminum
FinishNatural
GENERAL
Inlet LocationUpper driver side
Outlet LocationLower passenger side
Row Quantity2
Tube Size1.00"
Overall Width Range21.00" to 21.99"
Overall Width21.50"
Overall Height Range17.00" to 17.99"
Overall Height17.00"
Overall Thickness6.75"
Core Width Range18.00" to 18.99"
Core Width18.00"
Core Height Range16.00" to 16.99"
Core Height16.50"
Core Thickness2.25"
Cooling FanSingle
Transmission CoolerNo
Shroud IncludedYes
Inlet Size1.50
Outlet Size1.75
Amperage21 amps
Fan IncludedYes
Radiator Cap IncludedNo
Fan Diameter16 Inch
CFM2360 CFM
Blade MaterialPlastic
Shroud ColorNatural
Shroud MaterialAluminum
CFM Range2,300-2,400 CFM
NotesElectric fan has 21.6 amp rating.
Sold in QuantityEach
