DeWitts® 4139055M 1955-57 Corvette Radiator Fan Combo, Manual
DeWitts® 4139055M 1955-57 Corvette Radiator Fan Combo, Manual

DeWitts® 4139055M 1955-57 Corvette Radiator Fan Combo, Manual

56-60 Chevy Corvette, Single Pass Radiator Style, Downflow Radiator Flow Direction, Aluminum

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
DeWitts® 4139055M 1955-57 Corvette Radiator Fan Combo, Manual
DeWitts® 4139055M 1955-57 Corvette Radiator Fan Combo, Manual
DeWitts® 4139055M 1955-57 Corvette Radiator Fan Combo, Manual
DeWitts® 4139055M 1955-57 Corvette Radiator Fan Combo, Manual
X
DeWitts® 4139055M 1955-57 Corvette Radiator Fan Combo, Manual
DeWitts® 4139055M 1955-57 Corvette Radiator Fan Combo, Manual
Zoomed In Image
We estimate this item will ship on or before September 23rd.
Part # 1334139055M
$1,049.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Radiator Style:
Single Pass
Radiator Flow Direction:
Downflow
Material Type:
Aluminum
Inlet Location:
Upper driver side
Outlet Location:
Lower passenger side
Row Quantity:
2
Tube Size:
1.00"
Overall Width Range:
26.00" to 26.99"
Overall Width:
26.25"
Overall Height Range:
18.00" to 18.99"
Overall Height:
18.75"
Overall Thickness:
6.75"
Core Width Range:
23.00" to 23.99"
Core Width:
23.00"
Core Height Range:
14.00" to 14.99"
Core Height:
14.00"
Core Thickness:
2.25"
Finish:
Natural
Cooling Fan:
Single
Transmission Cooler:
No
Shroud Included:
Yes
Inlet Size:
1.50
Outlet Size:
1.75
Amperage:
21 amps
Fan Included:
Yes
Radiator Cap Included:
No
Fan Diameter:
16 Inch
CFM:
2360 CFM
Blade Material:
Plastic
Shroud Color:
Natural
Shroud Material:
Aluminum
CFM Range:
2,300-2,400 CFM
Notes:
Electric fan has 21.6 amp rating.
MFG. Part #:
32-4139055M
Sold in Quantity:
Each

Info

The superior quality of a DeWitts® radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts® is the only USA aftermarket radiator company to own an aluminum Nocolok® brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts® radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts® double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you’re still not sure if that’s enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity. Every DeWitts® Aluminum radiator is designed to fit the listed application without any modifications to your car and is available in your choice of a natural, Black Ice™ or polished finish.

Black Ice™ is a special two part epoxy paint. It is applied in a spray and it adheres to the aluminum and will never flake or peel off. The semi-gloss finish gives any radiator the look of an original copper/brass unit. The total thickness of the dried product is only .005” thick and it will not affect cooling performance.

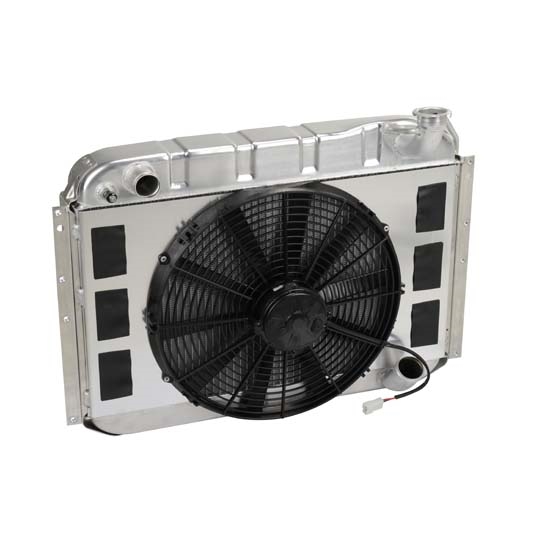

This fan/radiator combo consists of a Direct Fit® aluminum radiator and a 16" (2360 cfm) Spal electric fan with temperature switch and harness.

  • Direct Fit® with no modification
  • Epoxy free, aluminum, dual row core
  • 1" tubes
  • Press formed end tanks
  • Assembled and brazed in Howell, MI

Warranties

DeWitts® Radiator Warranty

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 1 business days for DeWitts to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
