Product Summary

Single Pass Radiator Style, Aluminum, 2 Row Quantity

    Key Specs

    MFG. Part #32-4138002M
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeAluminum

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy


    The superior quality of a DeWitts® radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts® is the only USA aftermarket radiator company to own an aluminum Nocolok® brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts® radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts® double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you’re still not sure if that’s enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity. Every DeWitts® Aluminum radiator is designed to fit the listed application without any modifications to your car and is available in your choice of a natural, Black Ice™ or polished finish.

    Black Ice™ is a special two part epoxy paint. It is applied in a spray and it adheres to the aluminum and will never flake or peel off. The semi-gloss finish gives any radiator the look of an original copper/brass unit. The total thickness of the dried product is only .005” thick and it will not affect cooling performance.

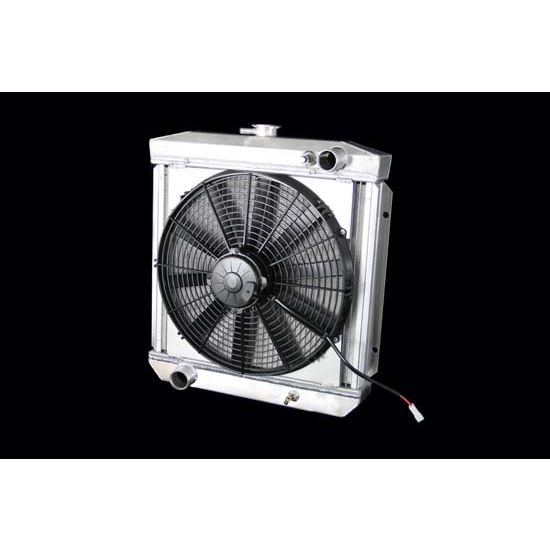

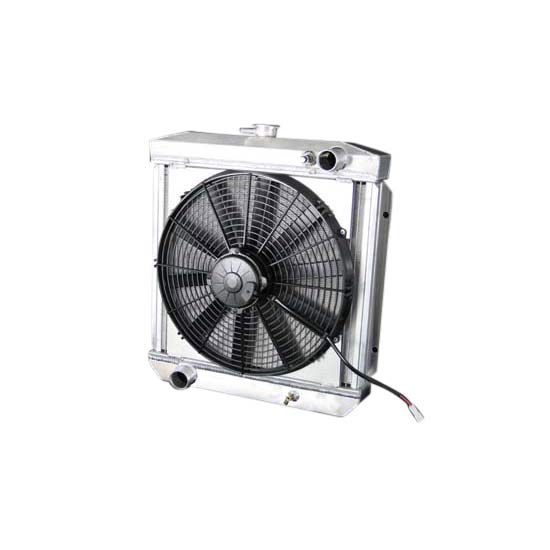

    This fan/radiator combo consists of a Direct Fit® aluminum radiator and a 16" (2360 cfm) Spal electric fan with temperature switch and harness.

    • Direct Fit® with no modification
    • Epoxy free, aluminum, dual row core
    • 1" tubes
    • Press formed end tanks
    • Assembled and brazed in Howell, MI



    MFG. Part #32-4138002M
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeAluminum
    Inlet LocationUpper passenger side
    Outlet LocationLower driver side
    Row Quantity2
    Tube Size1.00"
    Overall Width Range19.00" to 19.99"
    Overall Width19"
    Overall Height Range20.00" to 20.99"
    Overall Height20.5"
    Overall Thickness6.75"
    Core Width Range18.00" to 18.99"
    Core Width18.5"
    Core Height Range15.00" to 15.99"
    Core Height15.5"
    Core Thickness2.25"
    Cooling FanSingle
    Transmission CoolerNo
    Shroud IncludedYes
    Inlet Size1.50
    Outlet Size1.75
    Amperage21 amps
    Fan IncludedYes
    Radiator Cap IncludedNo
    Fan Diameter16 Inch
    CFM2360 CFM
    Blade MaterialPlastic
    Shroud ColorNatural
    Shroud MaterialAluminum
    CFM Range2,300-2,400 CFM
    NotesElectric fan has 22.0 amp draw.
    Sold in QuantityEach
