Part # 1334138001M

DeWitts® 4138001M 1964-66 Mustang Radiator Fan Combo, Manual

by

|

$719.99

each

Factory Shipped

$809.99

Save $90.00

This part will be shipped by the manufacturer. We estimate this item will ship on or before December 3rd.


Quantity

Select a vehicle to verify Fitment

Product Summary

64-66 Ford Mustang, Single Pass Radiator Style, Natural

    Key Specs

    MFG. Part #32-4138001M
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeAluminum
    FinishNatural

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    The superior quality of a DeWitts® radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts® is the only USA aftermarket radiator company to own an aluminum Nocolok® brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts® radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts® double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you’re still not sure if that’s enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity. Every DeWitts® Aluminum radiator is designed to fit the listed application without any modifications to your car and is available in your choice of a natural, Black Ice™ or polished finish.

    Black Ice™ is a special two part epoxy paint. It is applied in a spray and it adheres to the aluminum and will never flake or peel off. The semi-gloss finish gives any radiator the look of an original copper/brass unit. The total thickness of the dried product is only .005” thick and it will not affect cooling performance.

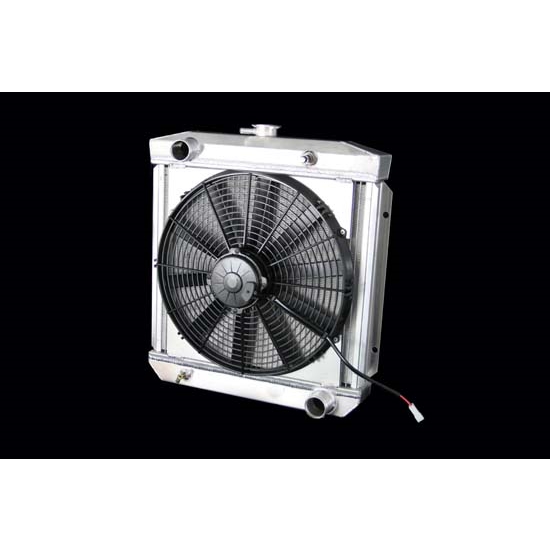

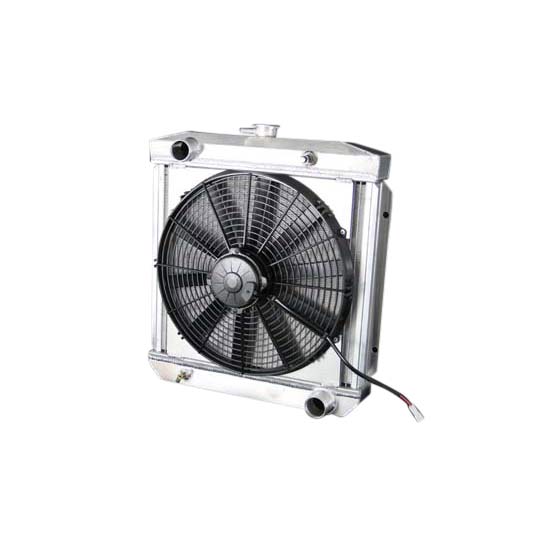

    This fan/radiator combo consists of a Direct Fit® aluminum radiator and a 16" (2360 cfm) Spal electric fan with temperature switch and harness.

    • Direct Fit® with no modification
    • Epoxy free, aluminum, dual row core
    • 1" tubes
    • Press formed end tanks
    • Assembled and brazed in Howell, MI

    Warranties

    Specifications

    KEY SPECS
    MFG. Part #32-4138001M
    BrandDeWitts
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeAluminum
    FinishNatural
    GENERAL
    Inlet LocationUpper driver side
    Outlet LocationLower passenger side
    Row Quantity2
    Tube Size1.00"
    Overall Width Range19.00" to 19.99"
    Overall Width19.00"
    Overall Height Range20.00" to 20.99"
    Overall Height20.50"
    Overall Thickness6.75"
    Core Width Range18.00" to 18.99"
    Core Width18.50"
    Core Height Range15.00" to 15.99"
    Core Height15.50"
    Core Thickness2.25"
    Cooling FanSingle
    Transmission CoolerNo
    Shroud IncludedYes
    Inlet Size1.50
    Outlet Size1.75
    Amperage21 amps
    Fan IncludedYes
    Radiator Cap IncludedNo
    Fan Diameter16 Inch
    CFM2360 CFM
    Blade MaterialPlastic
    Shroud ColorNatural
    Shroud MaterialAluminum
    CFM Range2,300-2,400 CFM
    NotesElectric fan has 22.0 amp draw.
    Sold in QuantityEach
