Product Summary

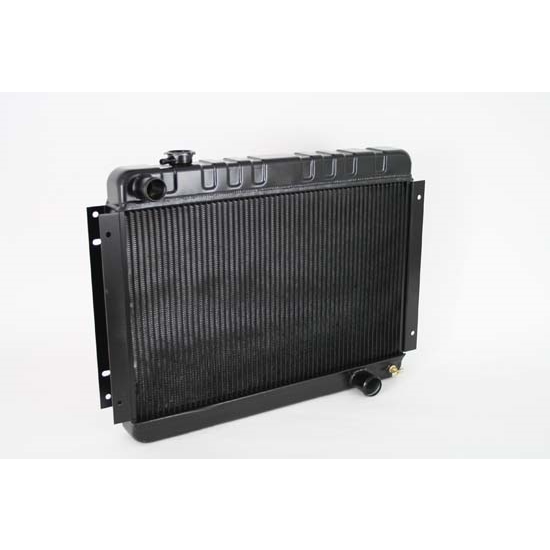

Single Pass Radiator Style, Aluminum, 2 Row Quantity

    Key Specs

    MFG. Part #32-1239002M
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeAluminum
    FinishBlack Ice Epoxy Coating

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    The superior quality of a DeWitts® radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts® is the only USA aftermarket radiator company to own an aluminum Nocolok® brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts® radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts® double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you’re still not sure if that’s enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity.

    Black Ice™ is a special two part epoxy paint. It is applied in a spray and it adheres to the aluminum and will never flake or peel off. The semi-gloss finish gives any radiator the look of an original copper/brass unit. The total thickness of the dried product is only .005” thick and it will not affect cooling performance.

    • Direct Fit® with no modification
    • Epoxy free, aluminum, dual row core
    • 1" tubes
    • Press formed end tanks
    • Assembled and brazed in Howell, MI

    Warranties

    Specifications

    KEY SPECS
    MFG. Part #32-1239002M
    BrandDeWitts
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeAluminum
    FinishBlack Ice Epoxy Coating
    GENERAL
    Inlet LocationUpper driver side
    Outlet LocationLower passenger side
    Row Quantity2
    Tube Size1.00"
    Overall Width Range25.00" to 25.99"
    Overall Width25.25"
    Overall Height Range20.00" to 20.99"
    Overall Height20"
    Overall Thickness3.25"
    Core Width Range25.00" to 25.99"
    Core Width25.5"
    Core Height Range15.00" to 15.99"
    Core Height15.5"
    Core Thickness2.25"
    Cooling FanNot Included
    Transmission CoolerNo
    Shroud IncludedNo
    Inlet Size1.50
    Outlet Size1.75
    ColorBlack
    Fan IncludedNo
    Radiator Cap IncludedNo
    Sold in QuantityEach
