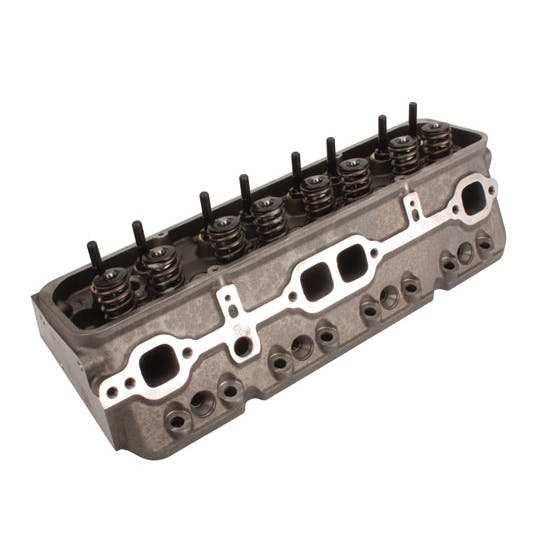

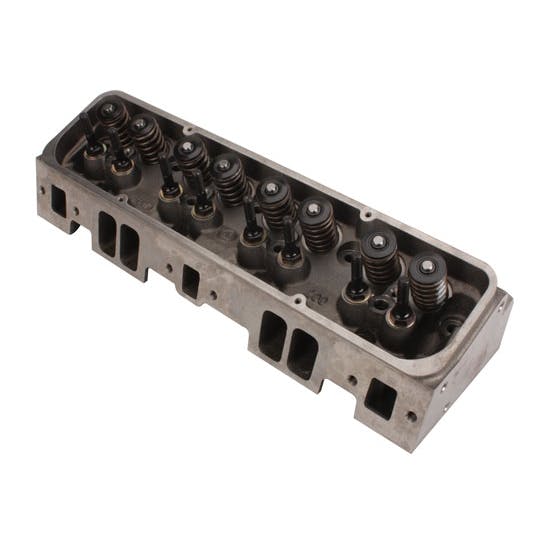

Dart Wissota Approved Small Block Chevy Super Stock Head, Complete
Dart Wissota Approved Small Block Chevy Super Stock Head, Complete
Chevy Small Block V8, Assembled Cylinder Head Style, Cast Iron, Natural
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Dart Wissota Approved Small Block Chevy Super Stock Head, Complete
X
Part # 3042436
$429.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- This is the Dart # 10024361 and we offer them either bare or complete
- 165cc intake runner
- 67cc combustion chamber
- 1.94" intake valve, 1.50" exhaust valve
- Straight spark plug configuration
Details
Cylinder Head Style:
Assembled
Material Type:
Cast Iron
Finish:
Natural
Combustion Chamber Volume:
67cc
Intake Runner Volume:
165cc
Exhaust Runner Volume:
65cc
Combustion Chamber Volume Range:
60cc - 69cc
Intake Runner Volume Range:
160cc - 169cc
Exhaust Runner Volume Range:
60cc - 69cc
Spark Plug Style:
Straight
Intake Port Shape:
Rectangle
Exhaust Port Shape:
Square
Intake Valve Diameter:
1.940"
Exhaust Valve Diameter:
1.500"
Spring Diameter:
1.250"
Sold in Quantity:
Each
MFG. Part #:
3042436
Info
If you are running a Super Stock at a WISSOTA sanctioned track, these are the heads to use. They are the Dart #10024361.
- 165cc intake runner
- 67cc combustion chamber
- Straight spark plugs
- Stainless Steel swirl-polished valves (1.94/1.50)
- Single Spring w/ Damper - Spec Chart (Link)
- 3/8" screw-in rocker studs
- Steel retainers and locks
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
