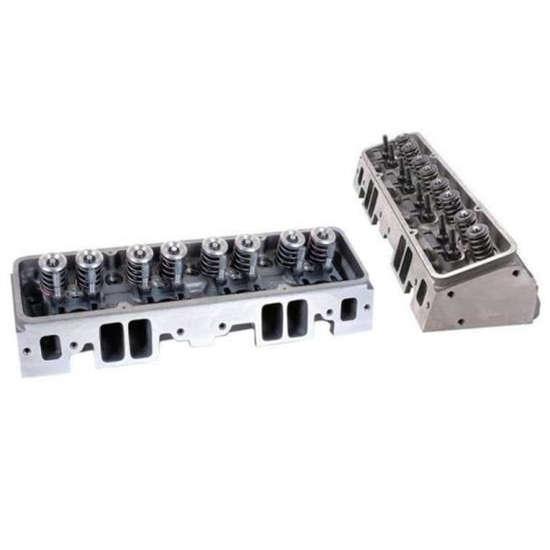

Dart Iron Eagle Assembled Chevy Heads, Angle Plug, 215cc/49cc
Dart Iron Eagle Assembled Chevy Heads, Angle Plug, 215cc/49cc

Dart Iron Eagle Assembled Chevy Heads, Angle Plug, 215cc/49cc

Chevy Small Block V8, Assembled Cylinder Head Style, Cast Iron, Natural, Angle Spark Plug Style

0 Reviews | 4 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Dart Iron Eagle Assembled Chevy Heads, Angle Plug, 215cc/49cc
Dart Iron Eagle Assembled Chevy Heads, Angle Plug, 215cc/49cc
Zoomed In Image
Part # 3041102
Starting from
$1,099.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Cylinder Head Style:
Assembled
Material Type:
Cast Iron
Finish:
Natural
Combustion Chamber Volume:
49cc
Intake Runner Volume:
215cc
Exhaust Runner Volume:
84cc
Combustion Chamber Volume Range:
40cc - 49cc
Intake Runner Volume Range:
210cc - 219cc
Exhaust Runner Volume Range:
80cc - 89cc
Spark Plug Style:
Angle
Intake Port Shape:
Rectangle
Exhaust Port Shape:
Square
Intake Valve Diameter:
2.020"
Exhaust Valve Diameter:
1.600"
Spring Diameter:
Select Style to see
Notes:
Heads come assembled.
Sold in Quantity:
Select Style to see

Info

These complete Dart Iron Eagle Platinum cylinder heads are professionally assembled right here at Speedway Motors. We offer three different versions of each head (Street Ready, Flat Tappet Ready, Roller Ready) to perfectly suit your racing needs. "FLAT" and "RACE" versions included 2.055 valves. "STRT" version includes 2.02 valve.

  • Standard 23 degree valve angle
  • Standard port location and intake bolt pattern fit most manifolds
  • Pushrod holes enlarged for clearance with high ratio rocker arms
  • Heart shaped chambers improve combustion efficiency
  • Multi-angle intake seats and radiused exhaust seats dramatically increase airflow
  • Hardened exhaust seats compatible with unleaded gasoline
  • Manganese bronze intake valve guides and phosphorous bronze exhaust valve guides extend cylinder head life
  • Spark plug holes are machined for tapered seat 5/8" hex "peanut" spark plugs
  • Dual bolt pattern accepts flange mount and center bolt valve covers

Head Application Chart (GIF)

Roller Ready - Please specify cam lift in comments section when ordering.

Dart Installation Note (PDF)

Recommended Spark Plug: 14 mm, 5/8" hex, .460 reach, taper seat

Iron Eagle Tech Notes (PDF)

Item Details

Angle Plug
215cc Intake Runner, 49cc Combustion Chamber
2.02/1.60 valves only

Specs

Some parts are not legal for use in California or other states with similar laws/regulations
