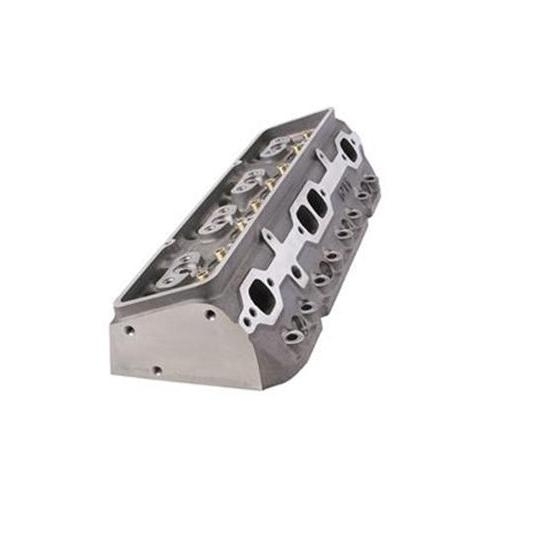

Dart 10510020P Iron Eagle Bare Chevy Cylinder Head, Angle, 215cc/64cc

Dart 10510020P Iron Eagle Bare Chevy Cylinder Head, Angle, 215cc/64cc
327 Chevy Small Block V8, 350 Chevy Small Block V8, 400 Chevy Small Block V8, Cast Iron
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle


Dart 10510020P Iron Eagle Bare Chevy Cylinder Head, Angle, 215cc/64cc
X

Dart estimates this item will ship on or before March 30th.
Part # 30410020
$470.20
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- The pushrod holes are enlarged for clearance with high ratio rocker arms
- Features heart shaped chambers that improve combustion efficiency
- Multi-angle intake seats and radiused exhaust seats dramatically increase airflow
- Has hardened exhaust seats that are compatible with unleaded gasoline
- Manganese bronze intake valve guides and phosphorous bronze exhaust valve guides extend cylinder head life
Details
Cylinder Head Style:
Bare
Material Type:
Cast Iron
Finish:
Natural
Combustion Chamber Volume:
64cc
Intake Runner Volume:
215cc
Exhaust Runner Volume:
84cc
Combustion Chamber Volume Range:
60cc - 69cc
Intake Runner Volume Range:
210cc - 219cc
Exhaust Runner Volume Range:
80cc - 89cc
Spark Plug Style:
Angle
Intake Port Shape:
Rectangle
Exhaust Port Shape:
Square
Intake Valve Diameter:
2.020"
Exhaust Valve Diameter:
1.600"
Sold in Quantity:
Each
MFG. Part #:
10510020P
Info
Using proprietary Speed Flow technology, Dart has developed more efficient port designs with improved velocity and flow capabilities. The combustion chambers and ports have been redesigned for greater breathing characteristics and more controllable combustion. Casting walls are cleaner and more consistent, resulting in better control over flow and heat.
- Standard 23 degree valve angle
- Standard port location and intake bolt pattern fit most manifolds
- Pushrod holes enlarged for clearance with high ratio rocker arms
- Heart shaped chambers improve combustion efficiency
- Multi-angle intake seats and radiused exhaust seats dramatically increase airflow
- Hardened exhaust seats compatible with unleaded gasoline
- Manganese bronze intake valve guides and phosphorous bronze exhaust valve guides extend cylinder head life
- Spark plug holes are machined for tapered seat 5/8" hex "peanut" spark plugs
- Dual bolt pattern accepts flange mount and center bolt valve covers
Iron Eagle Tech Notes (PDF)
Item Details
Angle Plug215cc Intake Runner, 64cc Combustion Chamber
2.05/1.60 valves only
Notes
Dart Installation Note (PDF)
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
