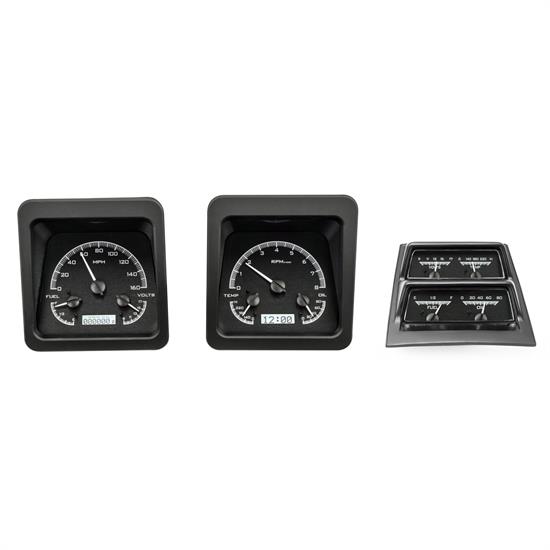

Dakota Digital VHX-69C-CAM-K-W 1969 Camaro VHX Instruments, Black
1969 Chevy Camaro, Analog Gauge Series, Electric Gauge Style, Dash Cluster Gauge Set Design
Arguably the pinnacle of GM Muscle Cars, the 1969 Camaro is the perfect vehicle for modification and bringing its features to today’s standards. These VHX Systems fit directly into the stock Camaro gauge carrier and include new clear lenses, the stock instrument lenses will no longer be used.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
- Uses factory bezel. Reproduction Instrument Carrier Assembly sold separately
- Black Face
- White Display
- 1/8" NPT, ground isolated sensor with a 10 ft harness.
- 1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/Generator
- Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.
- Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
- 0 -140 MPH
- 0- 8,000 RPM
- 0- 80 psi
- 100- 260ºF
- E, 1/4, 1/2, 3/4, F
- 9- 17 VDC
- Back lit technology is popular with performance instrumentation due to precise lighting allowing you to see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator, and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Centers
- Odometer (One-time user settable, Million Mile)
- Dual (A/B) Trip Meter (0- 9,999.9)
- Clock (12 hour)
- 0- 60 MPH Timer (0- 100 kmh)
- 1/4 mile time
- 1/4 end speed (trap speed)
- High-speed recall
- High RPM recall
- Turn Signals (Left/ Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-2000 sensor required)
- 4 x 4 (When vehicle is equipped)
- Wait to Start (When vehicle is equipped)
- **Not all OEM indicator lamp functions will be replaced.
- If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
- Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
