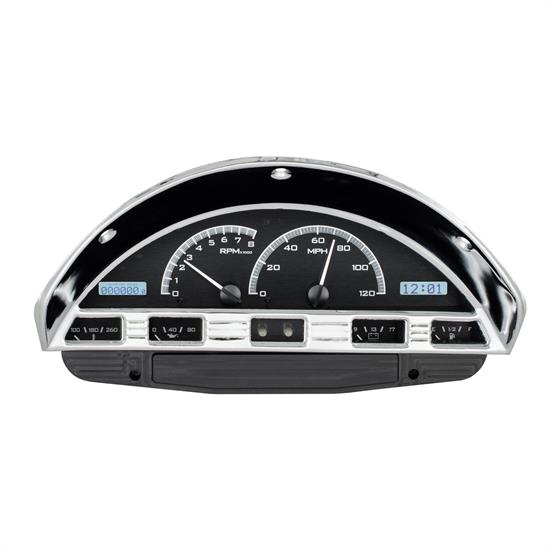

Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments

Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments

1956 Ford F-100, Analog Gauge Series, Electric Gauge Style, Dash Cluster Gauge Set Design

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
X
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Dakota Digital VHX-56F-PU-K-W 1956 Ford PU VHX Instruments
Zoomed In Image
We estimate this item will ship on or before April 9th.
Part # 365VHX56FPUKW
Save $40
$755.25
$794.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Gauge Series:
Analog
Gauge Style:
Electric
Gauge Set Design:
Dash Cluster
Number of Gauge Housings:
5
Speedometer Diameter:
4-23/32 Inch
Auxiliary Gauge Diameter:
2-15/32 Inch
Gauge Face Color:
Black
Lighted:
Yes
Lighting Type:
LCD/LED
Light Color:
White
Needle Color:
Red
Mount Type:
Direct / Adapter
Speedometer Included:
Yes
Tachometer Included:
Yes
Oil Pressure Gauge Included:
Yes
Oil Temperature Gauge Included:
No
Water Pressure Gauge Included:
No
Water Temperature Gauge Included:
Yes
Fuel Pressure Gauge Included:
No
Fuel Level Gauge Included:
Yes
Vacuum Gauge Included:
No
Volt Gauge Included:
Yes
Ammeter Gauge Included:
No
Boost/Pyrometer Gauge Included:
No
Exhaust Pressure Gauge Included:
No
Odometer Gauge Included:
Yes
Included Adapter/Fitting:
Adapter bushings from 1/4" to 3/8" and 1/2" NPT, 12mm and 16mm x 1.80
Includes Tubing:
No
Includes Mounting Bracket(s):
Yes
Hardware Included:
Yes
Clock Included:
Yes
Fuel Sender Included:
No
Speed Sender Included:
Yes
Oil Pressure Sender Included:
Yes
Turn Signals Included:
Yes
Includes Wire Harness:
Yes
Bezel Included:
No
MFG. Part #:
VHX-56F-PU-K-W
Notes:
Not all OEM indicator lamp functions will be replaced
Sold in Quantity:
Each

Info

All-new, billet aluminum, chrome-plated gauge housings packed full of the best in instrumentation technology will bring your cruiser to new heights. The analog gauge sweeps have a decidedly modern feel without losing the classic vibe. The LCD message center displays additional information, and the original turn signals are now lit with LEDs! System utilizes factory, cast-metal gauge surround.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Speedometer/Tachometer measures 5.07" overall, 4.72" cutout

Satellite gauges measure 2.675" overall, 2.47" cutout

  • Black face
  • White display
  • Cast metal dash bezel not included

Features

Included Sensors

Water Temperature

  • 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

  • 1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/Generator

  • Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.

Bushings

  • Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Manuals

Wiring and Setup Manual

Quick Start Manual

Mounting Manual

Application

Analog Gauges

Speedometer

  • 0 -160 MPH

Tachometer

  • 0- 8,000 RPM

Oil Pressure

  • 0- 80 psi

Water Temperature

  • 100- 260ºF

Fuel Level

  • E, 1/4, 1/2, 3/4, F

Voltmeter

  • 9- 17 VDC

Lighting

  • Back lit technology is popular with performance instrumentation due to precise lighting allowing you to see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator, and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers

Standard Displays

  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12 hour)

Performance Meters

  • 0- 60 MPH Timer (0- 100 kmh)
  • 1/4 time
  • 1/4 mile end speed (trap speed)
  • High-speed recall
  • High RPM recall

Built-in Indicators

Indicators

  • Turn Signals (Left/ Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged when vehicle is equipped)
  • Gear Position (Optional GSS-2000 sensor required)
  • 4 x 4 (When vehicle is equipped)
  • Wait to Start (When vehicle is equipped)
  • **Not all OEM indicator lamp functions will be replaced.
    • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Notes

Calibration and Use

Pushbutton

  • Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers
