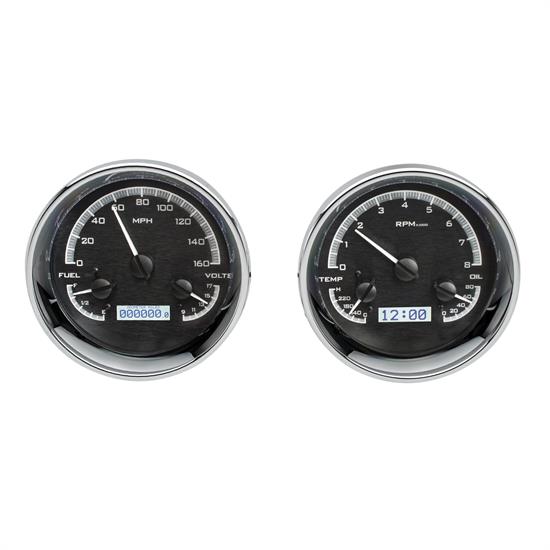

Dakota Digital VHX-1014-K-W Universal Dual Round VHX Instruments
Universal Fit, Analog Gauge Series, Electric Gauge Style, Dash Cluster Gauge Set Design, Black
A new look on a traditional layout, the dual round gauge format has been a design staple for generations. Allowing flexibility into nearly any type of vehicle, these 5.4” dual round packages complement several vehicle themes. Gauge housings machined from 6061 aluminum, finished in flawless chrome plating. Cutout diameter of 5”, Depth of 1.85”.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
- 5.4" Dual Round Gauges
- Black Face
- White Display
- 1/8" NPT, ground isolated sensor with a 10 ft harness.
- 1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/Generator
- Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.
- Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
- 0 -160 MPH
- 0- 8,000 RPM
- 0- 80 psi
- 100- 260ºF
- E, 1/4, 1/2, 3/4, F
- 9- 17 VDC
- Back lit technology is popular with performance instrumentation due to precise lighting allowing you to see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator, and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Centers
- Odometer (One-time user settable, Million Mile)
- Dual (A/B) Trip Meter (0- 9,999.9)
- Clock (12 hour)
- 0- 60 MPH Timer (0- 100 kmh)
- 1/4 time
- 1/4 mile end speed (trap speed)
- High-speed recall
- High RPM recall
- Turn Signals (Left/ Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-2000 sensor required)
- 4 x 4 (When vehicle is equipped)
- Wait to Start (When vehicle is equipped)
- **Not all OEM indicator lamp functions will be replaced.
- If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
Calibration and Use
- Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers
ChartsWiring and Setup Manual
- This item ships directly from the manufacturer. It may take an additional 50 business days for Dakota Digital to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
