Dakota Digital VFD3-66F-BRONCO Ford Bronco/Truck Series III Gauge

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

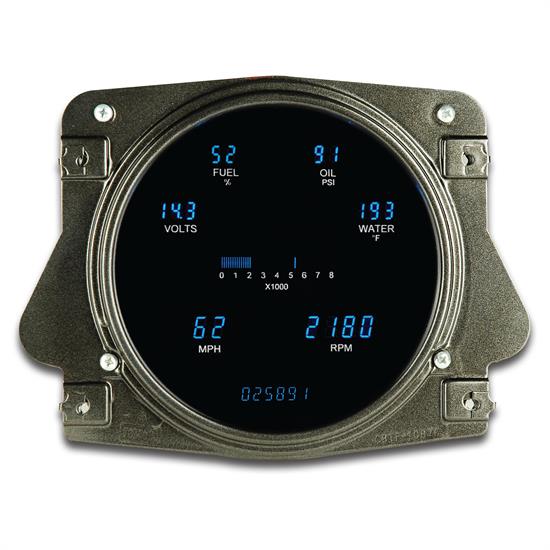

Full 6 Gauge Instrument System fits into OEM bezel with single round opening for 1961- 1966 Ford Pickup.

Fits directly into existing bezel with single round opening with some cutting of stock dash, behind OEM bezel (not included).

• 1961-66 Ford Pickup
• 1966-77 Ford Bronco
• Blue Lettering

Analog Gauges

Speedometer

• 0 - 255 MPH

Tachometer

• 0- 17,500 RPM

Oil Pressure

• 0 - 99 psi

Water Temperature

• 100 - 300ºF

Fuel Level

• 0 - 99%

Voltmeter

• 8 - 17 VDC

Digital Message Centers

Standard Displays

• Odometer (One-time user settable, Million Mile)

Performance Meters

• 0 - 60 MPH Timer (0 - 100 kmh)
• 1/4 time
• 1/4 mile end speed (trap speed)
• High-speed recall
• High RPM recall

Built-in Indicators

Indicators

• Turn Signals (Left/ Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/On & Engaged when vehicle is equipped)
• Gear Position (Optional GSS-3000 sensor required)
• 4 x 4 (When vehicle is equipped)
• Wait to Start (When vehicle is equipped)

**Not all OEM indicator lamp functions will be replaced.

If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Calibration and Use

Pushbutton Control

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Included Sensors

Water Temperature

• 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

• 1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/Generator

• Replaces Ford and/or GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required.

Bushings

• Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
