Add to Cart
$1,295.00
$1,230.25
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric

Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric

73-87 Chevy, 73-86 GMC, Analog Gauge Series, Electric Gauge Style, 1 Number of Gauge Housings

0 Reviews | 0 Answered Questions
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
X
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Dakota Digital MDX-73C-PU 73-87 GM Truck HDX Instruments, Metric
Zoomed In Image
Part # 365MDX73CPU
Save 5%
$1,230.25
$1,295.00
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Gauge Series:
Analog
Gauge Style:
Electric
Gauge Set Design:
Dash Cluster
Number of Gauge Housings:
1
Gauge Face Color:
Black
Liquid Filled:
No
Lighted:
Yes
Lighting Type:
LED
Light Color:
User-Selectable
Needle Color:
White
Lettering Color:
White
Mount Type:
Direct
Speedometer Included:
Yes
Tachometer Included:
Yes
Oil Pressure Gauge Included:
Yes
Water Temperature Gauge Included:
Yes
Fuel Level Gauge Included:
Yes
Volt Gauge Included:
Yes
Odometer Gauge Included:
Yes
Fuel Sender Included:
No
Speed Sender Included:
Yes
Oil Pressure Sender Included:
Yes
Turn Signals Included:
Yes
Includes Wire Harness:
Yes
Bezel Included:
No
Temperature Sensor Bung Included:
Yes
MFG. Part #:
MDX-73C-PU
Sold in Quantity:
Set

Info

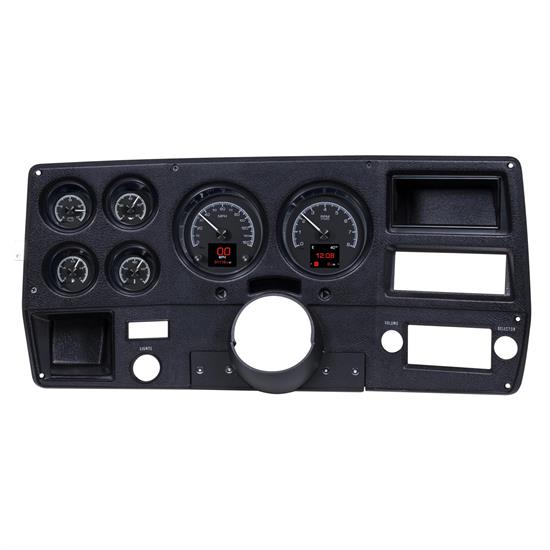

Still affordable and easy to find, 1973-87 Chevy and GMC pickups are gaining ground in the truck popularity contest. We love ‘em for the stock cluster arrangement; a big speedo and tach front and center with the satellites to the side. We added a TFT-display in each large opening for the utmost in customization; view any parameters you like while the integrated buttons make calibration a cake-walk. Stick this in your 1973-91 Blazer, Suburban or heavy-duty pickup too!

Each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

*Bezel not included, shown for visual/presentation purposes.

System uses OEM or reproduction style bezel.

Features

Lighting Technology

Colors

  • Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.

Brightness

  • Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.

Themes

  • With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.

Technology

  • Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice.

Included Sensors

Water Temperature

  • 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

  • 1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/Generator

  • Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.

Bushings

  • Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Manuals

Wiring and Setup Manual

Quick Start Manual

Mounting Manual

Application

Analog Gauges

Speedometer

  • 0 -260 km/h

Tachometer

  • 0- 8,000 RPM

Oil Pressure

  • 0- 80 psi

Water Temperature

  • 40 - 120ºC

Fuel Level

  • E, 1/4, 1/2, 3/4, F

Voltmeter

  • 9- 17 VDC

Digital Message Centers

Standard Displays

  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12 hour)
  • Estimated Range to Empty

Performance Meters

  • 0 - 100 KMH Timer
  • 1/4 and 1/8 mile time
  • 1/4 and 1/8 mile end speed (trap speed)
  • High-speed recall
  • High RPM recall

Built-in Indicators

Indicators

  • Turn Signals (Left/ Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged when vehicle is equipped)
  • Gear Position (Optional GSS-2000 sensor required)
  • 4 x 4 (When vehicle is equipped)
  • Wait to Start (When vehicle is equipped)
  • Two Auxiliary input indicators with user-programmable labels
  • Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
  • **Not all OEM indicator lamp functions will be replaced.
    • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Notes

Calibration and Use

Pushbutton Control

  • Dakota Digital instrument systems are programmed and operated by the push of a button. A two-sided rocker switch is included with each package; mount this switch in an easily accessible location when in the driving position. The rocker switch provides quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center or through the included buzzer. Once configured, this same switch is used to access the wealth of information located in the digital message centers.

Calibration

  • All calibration settings are handled through the included pushbutton switch or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
