DJM Suspension DJM2055-4/6 Lowering Kit, 88-91 C1500 4/6 Drop
88-91 Chevy C1500
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Lowered trucks handle better, look better and, when lowered correctly with properly engineered and quality matched components, they ride nice as well!
DJM Suspension has thought of everything for this kit! New Drop Spindles, Front Coil Springs, Axle Flip Kit and everything you need to get that perfect ride height! This kit is ready to go out of the box and installs in the factory location!
This kit will require you to C-Notch your frame as this is the best way to drastically lower the rear end of your truck. Support brackets are included to reinforce your frame as well as DJM’s adjustable axle brackets.
*Note: This Spindle will only fit 1988-1991 Standard Cab C1500
*Note: With lowering your vehicle 5 inches or more we recommend replacing your front shocks with 1361315 and 1362000 for driver rear and 1362200 for passenger rear. The shock extenders correct the shock angle so they function properly and centers the rear axle.
- Fits 1988-1991 Chevy C1500
- Front Drop: 4 Inches
- Rear Drop: 6 Inches
- Spindle – (Only fits 88-91 C1500 Standard Cab Trucks)
- 3” Drop Coil Springs
- Rear Flip Kit
- U-Bolt Kit
- All Mounting Hardware
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

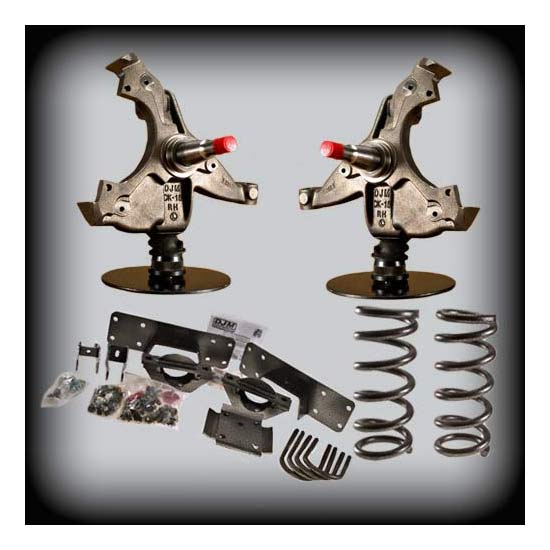

What's In The Kit
DJM Suspension DS2055-2 Drop Spindle, 1988-1991 C1500,2 Inch DropPart # 136DS20552Qty x 1
DJM Suspension CS2351-2 1988-1998 C1500 Front Coils , 2 Inch DropPart # 136CS23512Qty x 1
DJM Suspension FK1025-6 Axle Flip Kit, 88-98 C1500, 6 Inch DropPart # 136FK10256Qty x 1
