Currie CE-GMN6872MX 1968-72 GM X-Body 9 Inch Ford Rearend, Multi-Leaf
Currie CE-GMN6872MX 1968-72 GM X-Body 9 Inch Ford Rearend, Multi-Leaf

Currie 1968-72 Nova Multi-leaf 9 Inch Rear Axle

0 Reviews | 2 Answered Questions
Out of Stock
Select your vehicle to verify fitment.
Select Vehicle
Currie CE-GMN6872MX 1968-72 GM X-Body 9 Inch Ford Rearend, Multi-Leaf
Currie 1968-72 Nova Multi-leaf 9 Inch Rear Axle
Zoomed In Image
Part # 91026872
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • This product is discontinued.
  • This item ships directly from the manufacturer. It may take an additional business days for Currie Enterprises to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
  • This item 91026872 is made to order. It will be shipped from our warehouse when it is produced.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Info

Now you can have the strength and serviceability that Ford drivers have enjoyed for years underneath your GM vehicle. Currie Crate Rearends are built using the stock overall width, pinion offest, and mounting points of your original rear axle housing, making it a 100% bolt-in upgrade.

  • All new 9-Plus heavy duty housing
  • Replacement for 1968-72 Nova/Chevy II chassis
  • Heavy duty reproductions of the GM multi leaf spring pads installed
  • 31 spline performance axle shafts
  • 60" width
  • Torino-style late model large bearing housing ends
  • Third member studs installed
  • Axles drilled for stock 5 on 4-3/4" wheel bolt pattern
  • 7/16"-20 wheel studs pressed into axles
  • 1/4” thick heavy duty bearing retainer plates
  • Tapered Timken style wheel bearings pressed onto axle

Note: Works with Speedway rear disc brake kits, 11" Ford Explorer disc brakes, and Wilwood disc brakes. Third member sold separately.

How to Measure Your Housing Tech Tip (Link)

To learn more about Currie's 9+ rearends, check out these Frequently Asked Questions on 9-Plus Housing (Link)

Installation Notes:

When installing new axles in rearends with posi traction differentials, be sure to install the driver's side axle first to keep the splines properly aligned.  Failure to do so may move the two splined gears out of alignment, and it may be difficult to install the driver's side axle properly if the passenger side axle is already installed.

If installation of passenger side axle is done first it may require two people when installing the driver's side axle, with both parties rotating reach axle until splines are in line and the driver's side axle fully sides into the housing.

To ensure you get the most out of your new 9 Inch components, Currie recommends that you perform a proper break-in process:

  • Use a name brand mineral-based gear oil, preferably 85w140 (Extremely high quality synthetic oils may be used once break-in process has been successfully performed)
  • Place vehicle on jack stands and let the rearend spin while the vehicle idles - run transmission in both forward and reverse periodically throughout the process
  • Continue to run the rearend until the pinion gets hot (place hand on bottom of the differential housing to verify this)
  • Proper break-in allows:
    • The ability to install new axles and hit the track the same day without worry
    • Extended life for rearend components
    • Keeps the quality and life of your gear oil

Note: If you find that your rearend is running somewhat "tight" be sure to add Currie's 9+ Friction Modifier to "loosen up".  If a more aggressive performance is desired, Friction Modifier is not needed.



Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.

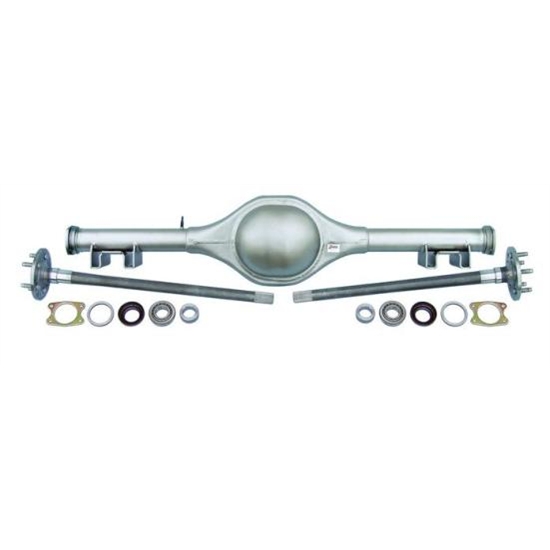

  • 9" Housing for 1968-72 Nova w/ Multi-leaf Springs
    Qty x 1
  • Long & Short Axle Pair
    Qty x 1
