#9109850
Coilover Shock Mount Pair, 5/8 Inch Bolt, 4-1/2 Inch, Polished
- The 5/8" forged button head bolt looks good while offering maximum support
- Billet aluminum support spacer has internal threads which allows you to properly support the shock without crushing the bushing
- Thread length of bolt allows for use with up to 1/2" thick brackets
$38.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 4.50" Overall Length, Aluminum, Polished
- The 5/8" forged button head bolt looks good while offering maximum support
- Billet aluminum support spacer has internal threads which allows you to properly support the shock without crushing the bushing
- Thread length of bolt allows for use with up to 1/2" thick brackets
- Nylock nut is included to prevent bolts loosening over time
- Detailed instructions are included to ensure proper installation
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9109850 |
| Overall Length | 4.50" |
| Overall Diameter | 1.75" |
| Material Type | Aluminum |
| Finish | Polished |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9109850 Details
Speedway Motors 9109850 Details

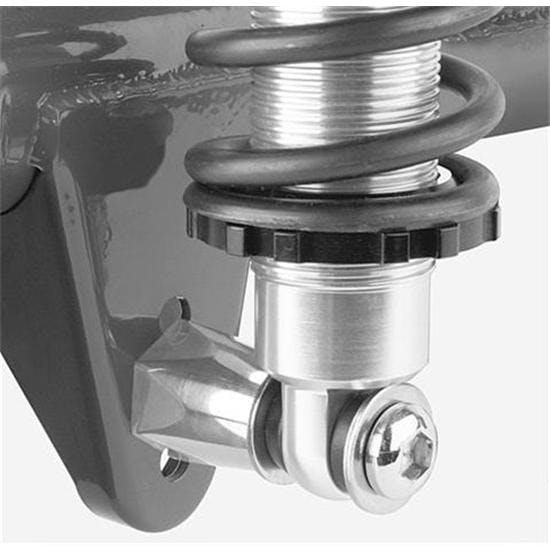

Speedway sells the ONLY fully engineered shock mount. The 5/8" forged button head bolt looks good while offering maximum support. The 1-3/4" x 1-3/4" billet aluminum support spacer has internal threads. This allows you to properly support this shock without crushing the bushing like others do, which leads to shock failures. There's a reason major chassis builders use this mount.
- Billet aluminum
- 4-1/2" from base of head to end of threads
- 1-1/4" shock mount base
- Safely mounts to brackets 1/2" thick
- Includes required washers and nylon lock nut
- Mounts sold as a pair
Charts
Speedway Motors 9109850 Specifications
Speedway Motors 9109850 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9109850 |
| Brand | Speedway Motors |
| Overall Length | 4.50" |
| Overall Diameter | 1.75" |
| Material Type | Aluminum |
| Finish | Polished |
| GENERAL | |
| Notes | The "collar/spacer" between the shock and the mount is 1.75" wide. |
| Flange Diameter | 1.25" |
| Diameter Big End | 1.75" |
| Diameter Small End | 1.25" |
| Thread Pitch | 5/8"-18 |
| Sold in Quantity | Pair |
| Stud Diameter | .625" |
Ratings & Reviews
4.9
7 Reviews
Customers appreciate the high-quality machine work of our product and consider its aesthetic a great addition to their build. The product's practicality was highlighted, particularly regarding the shock mount bolt, with a suggested improvement for the installation process. Comparatively, our product surpasses others in terms of its quality and usability.
Ratings & Reviews
4.9
7 Reviews
Customers appreciate the high-quality machine work of our product and consider its aesthetic a great addition to their build. The product's practicality was highlighted, particularly regarding the shock mount bolt, with a suggested improvement for the installation process. Comparatively, our product surpasses others in terms of its quality and usability.
4.9
7 reviews
5
6
4
1
3
0
2
0
1
0
Filter by Ratings
Yes
5.0
5 months ago
Gray Beard
Tx
Verified
Fit good
Would Recommend
Yes I will buy again
5.0
6 months ago
Drew
New Zealand
Verified
Excellent product Excellent quality Speedway Motors you sell the best parts.
Would Recommend
Excellent Lower Shock Mount
5.0
7 months ago
George
Georgia
Verified
Worked well as a bottom mount for coilovers on my 32 Ford with a Ford 9". Polished finish is a plus and done well.
Would Recommend
Great quality
5.0
7 months ago
Geno
Dallas,tx
Verified
Very versatile part. Allows for different mounting bracket thickness.
Would Recommend
Just what I needed.
5.0
a year ago
Fred
Dominican Republic
Verified
I was going to have to make something, but this works great. I did not see anything similar when searching for a solution.
Nice addition to the build.
5.0
a year ago
Catfish
Campbellsville, KY
Verified
Almost too pretty for a rat rod! Machined nice, good quality.
Would Recommend
Good looking mounts
4.0
a year ago
R george
Oregon
Verified
The only thing I would change it the shock mount bolt make it with a nylock on the shock end so you do.t have to disassemble the whole mount to remove the shock
Would Recommend
Showing 7 of 7 reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
How much threads go through bracket on rear end my bracket thicknes is about 1/2inch Thank you If spacer threaded all the way up how much threads are left ?
by gene
• 2 years ago
1 answer
View Answer
1 of 1 questions shown
