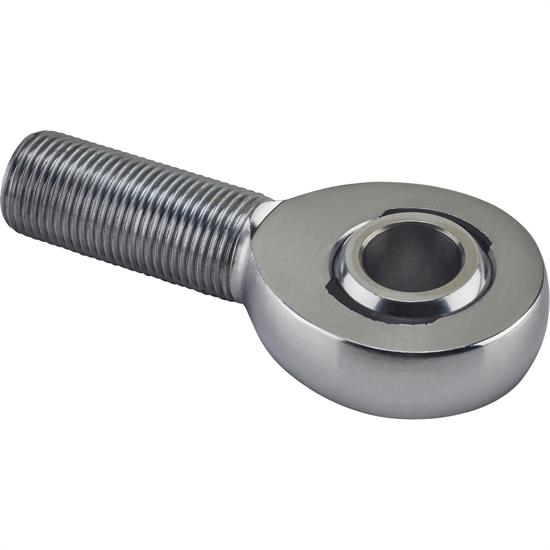

#91002346
Chromoly Heim Joint Rod End, 3/4-16 LH Male, 5/8 Inch Hole
- This Chromoly rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The Heat treated 4130 chromoly steel body with a hard chrome plated heat treated steel ball will support heavy shock loads
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
$20.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Chromoly, Chrome
- This Chromoly rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The Heat treated 4130 chromoly steel body with a hard chrome plated heat treated steel ball will support heavy shock loads
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
- Injection molded Kevlar®/Teflon® liner provides self-lubrication as well as seals out dirt and debris
- 3/4"-16 LH male rolled threads ensure strength and precision
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91002346 Details
Speedway Motors 91002346 Details
Heat treated, 4130 chromoly steel body with hard chrome, heat treated ball to support heavy shock loads. Injection molded Kevlar/Teflon® liner seals out dirt and debris.
- Kevlar/Teflon® race reduces slop & eliminates binding
- Provides smooth & precise movement of steering & suspension
- The ultimate in strength & durability
Applications: Steering & suspension for racing & high horsepower applications.
Charts

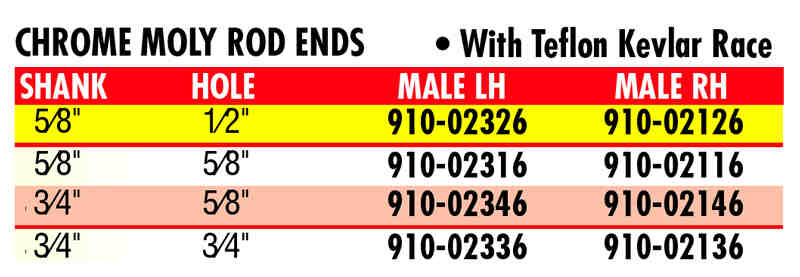

Chromoly Rod End Chart (GIF)
Guides & Documents
Speedway Motors 91002346 Specifications
Speedway Motors 91002346 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91002346 |
| Brand | Speedway Motors |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Chrome |
| Color | Chrome |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.75" |
| Rod End Head Width | 1.75" |
| Overall Length | 3.75" |
| Overall Thickness | 0.75" |
| Center Hole to End of Shank | 2.75" |
| Sold in Quantity | Each |
