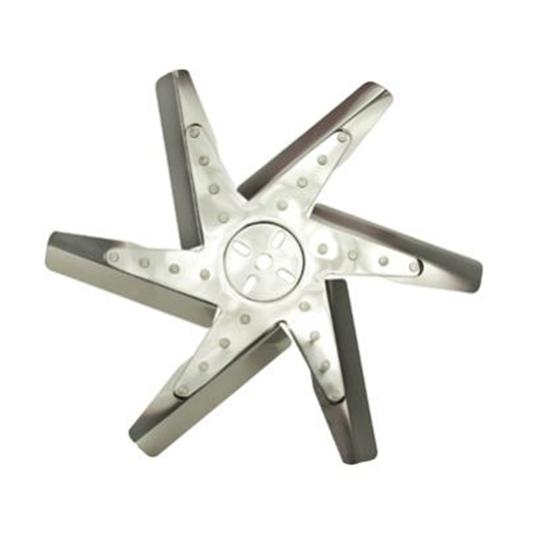

13 Inch Stainless Flex Radiator Cooling Fan w Chrome Plated Center
13 Inch Stainless Flex Radiator Cooling Fan w Chrome Plated Center
Universal Fit, Mechanical Cooling Fan Type, Single Fan Quantity, Pull Fan Flow Type
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
13 Inch Stainless Flex Radiator Cooling Fan w Chrome Plated Center
X
Part # 910157-13
$47.99
$49.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- It is specially formed blade tips minimize fan noise
- Has two piece steel center hubs for positive blade attachment
- Mounting surface to the front is 1/4" and to the rear is 7/8"
- Features a chrome plated steel hub center with stainless steel blades
- The narrow blade width and moderate pitch improves air flow with minimal horsepower loss
Details
Cooling Fan Type:
Mechanical
Fan Quantity:
Single
Fan Diameter:
13 Inch
Fan Flow Type:
Pull
Rotation:
Clockwise/Standard
Blade Type:
Flex
Blade Count:
6-blade
Blade Material:
Stainless Steel
Blade Finish:
Polished
Blade Color:
Natural
Hub Material:
Steel
Hub Finish:
Chrome
Hub Color:
Natural
Shaft Diameter:
.63"
Slot Length:
.75"
Slot Width:
.34"
Depth:
1.130"
Weight:
2.05 lbs.
Hardware Included:
No
MFG. Part #:
19213
Sold in Quantity:
Each
Notes:
Rated to 8,000 RPM. Depth from water pump mount towards engine is .94"
GTIN Code:
083277192135
Info
Features a chrome plated steel hub center with stainless steel blades. Great for applications where space is at a premium.
- Standard Rotation (clockwise)
- Non-reversible
- Rated to 8,000+ RPM
- Narrow blade width and moderate pitch improves air flow with minimal horsepower loss
- Specially formed blade tips minimize fan noise
- Two piece steel center hubs for positive blade attachment
- Flange bolt spacing: 1-3/4" - 2-1/4" (1.309"-2.782")
- Mounting surface to front: 1/4"
- Mounting surface to rear: 7/8"
- Blade pitch: 50°
Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.
