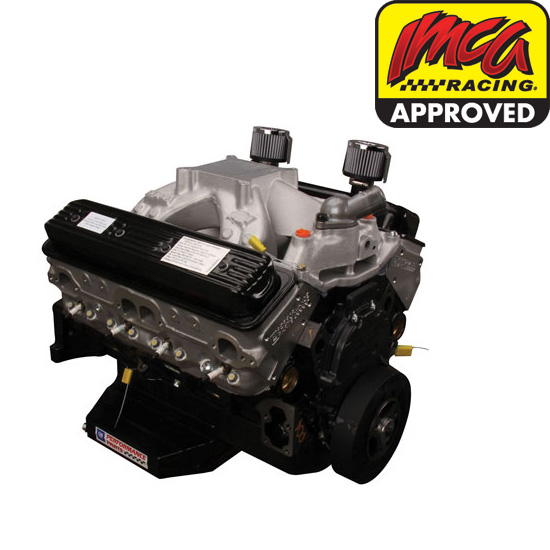

Chevrolet Performance 88869604 CT400 IMCA-Sealed 604 Crate Engine
350 Chevy Small Block V8, 604 GM Chevy Crate Engine, 350 cu. in. Engine Displacement
- High-revving matched components
- A fraction of the price of a custom engine
- Sealed with IMCA-issued bolts and is approved for use in IMCA
- Popular in Modified and Late Model classes*
- 400 HP @ 5500 RPM
- 400 ft. lbs. of torque @ 4500 RPM
- 4.00" x 3.48" bore x stroke
- 9.6:1 compression ratio
- 92 octane recommended fuel
- 4-bolt main caps
- Cam lift: .474" intake / .510" exhaust
- Cam duration @ .050": 208° intake / 221° exhaust
- 112° lobe separation
- 1.5:1 ratio aluminum roller rocker arms
- 2.00" Intake / 1.55" Exhaust valves
- Fully assembled long block
- Black steel valve covers w/ breathers
- Oil pump, pick-up, 8 quart oil pan
- Eliminator Vortec intake manifold
- Spark plugs
- 8" harmonic balancer
- Front timing cover
- IMCA-approved seal kit
- Requires the addition of a carburetor, starter, water pump, distributor, and plug wires (not included). See 121-8604 for a "dressed" and dynoed version of this engine.
- Requires an externally balanced flywheel (not included).
- The 8-quart Circle Track oil pan is 7 inches deep at the sump. It will clear most GM rear-steer chassis with the stock engine location.
- For Circle Track Racing only - not intended for street use.
WarrantiesGM Performance Parts Racing Crate Engines are excluded from the limited warranty.
- This item 91019318604 is made to order. It will be shipped from our warehouse when it is produced.
