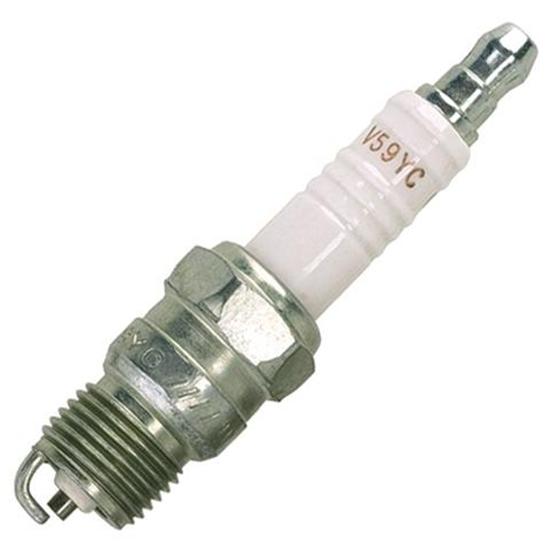

Champion 672 V59YC 14mm Gas Spark Plug .46 Inch Reach 5/8 Inch Hx Cold
Champion 672 V59YC 14mm Gas Spark Plug .46 Inch Reach 5/8 Inch Hx Cold

Champion 672 V59YC 14mm Gas Spark Plug .46 Inch Reach 5/8 Inch Hx Cold

0 Reviews | 2 Answered Questions
Discontinued
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Champion 672 V59YC 14mm Gas Spark Plug .46 Inch Reach 5/8 Inch Hx Cold
Champion 672 V59YC 14mm Gas Spark Plug .46 Inch Reach 5/8 Inch Hx Cold
Champion 672 V59YC 14mm Gas Spark Plug .46 Inch Reach 5/8 Inch Hx Cold
X
Champion 672 V59YC 14mm Gas Spark Plug .46 Inch Reach 5/8 Inch Hx Cold
Zoomed In Image
Part # 271V59YC
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Spark Plug Seat Style:
Tapered
Spark Plug Reach:
0.46"
Thread Pitch:
14mm
Insulator Type:
Non-projected
Resistor:
No
Spark Plug Heat Range:
59
Core Material:
Copper
Tip Material:
Nickel Alloy
MFG. Part #:
672 V59YC
Overall Length:
14.00"
Wrench Size:
5/8"
Operating Temperature:
59.00 °F
Sold in Quantity:
Each
Notes:
Cold
GTIN Code:
037551005925

Info

Champion Racing Series plugs include all the features of their conventional plugs, but are built with extreme engine conditions and durability in mind.  For GM & Ford cast iron cylinder heads and some OE design aluminum heads. Will not fit GT40 heads.

  • Nickel Alloy Ground and Center Electrodes
  • Copper Core Center Electrode Allows for Increased Conductivity and Heat Control
  • Peanut Plug
  • 14mm, .460" reach, 5/8" hex
  • Projected Core Nose
  • Heat Range: Cold (59)

Champion Spark Plug Guide (GIF)

Champion Heat Range Guide (GIF)

Champion Conversion Chart (GIF)

Spark Plug Gapping Instructions (GIF)

Autolite, Champion, NGK Cross Reference Chart (PDF)

Item Details

14mm, .460" Reach, 5/8" Hex

Notes

While 5/8" (16mm) and 13/16" are the two most common plug hex sizes, plugs can have a hex as small as 8mm or larger than 1".

If you're a tuner or engine builder in search of the perfect spark plug for your current project, pay special attention to the hex size required.  Remember to take into consideration not only the diameter of the cylinder head, but also the added thickness of the plug socket needed for installation.

A spark plugs reach is calculated by the length of the threads.  It is measured from the seat of the plug to the end of the threads.

It should be noted that the reach does not include the electrodes, or an extended metal shell.  When custom-selecting a spark plug, the electrode length and projection should be included in the calculation when taking into consideration the clearance in the combustion chamber.

WARNING: Spark plugs with different seat types are NOT interchangeable.

  • Spark plugs with a flat seat must be used in engines designed for a gasket seal.
  • Spark plugs with a tapered seat must be used in engines designed for a tapered seal.

 Use of an improper plug in an engine will result in engine damage.

Important Messages:

  • This product is discontinued.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
