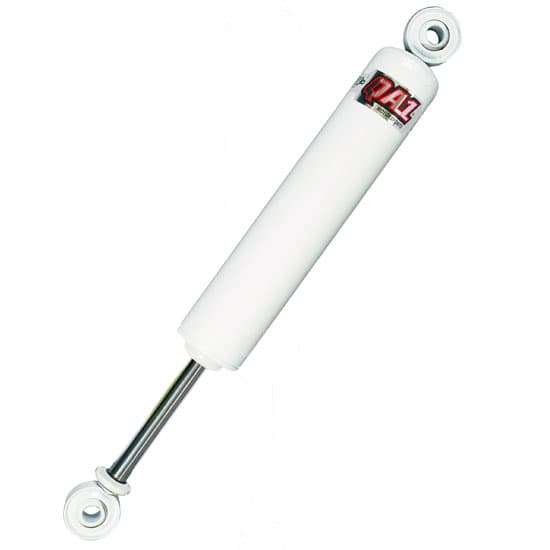

Carrera 5975 Econo-Bearing Shock, 7 Inch Stroke, Comp/Reb: 5/5
Carrera 5975 Econo-Bearing Shock, 7 Inch Stroke, Comp/Reb: 5/5

Carrera 5975 Econo-Bearing Shock, 7 Inch Stroke, Comp/Reb: 5/5

0 Reviews | 0 Answered Questions
Discontinued
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Carrera 5975 Econo-Bearing Shock, 7 Inch Stroke, Comp/Reb: 5/5
Carrera 5975 Econo-Bearing Shock, 7 Inch Stroke, Comp/Reb: 5/5
Carrera 5975 Econo-Bearing Shock, 7 Inch Stroke, Comp/Reb: 5/5
X
Carrera 5975 Econo-Bearing Shock, 7 Inch Stroke, Comp/Reb: 5/5
Zoomed In Image
Part # 2552175
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Shock Type:
Twin Tube
Shock Body Material:
Steel
Shock Stroke Range:
7.00" to 7.99"
Compression Valving:
5
Rebound Valving:
5
Shock Stroke:
7.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length Range:
19.00" to 19.99"
Extended Length:
19.22"
Compressed Length Range:
12.00" to 12.99"
Compressed Length:
12.13"
Finish:
Painted
Coil-Over Compatible:
No
Body Diameter:
2.00"
Valve Positions:
5 compression - 5 rebound
Bushing Material:
Steel
MFG. Part #:
5975
Sold in Quantity:
Each
Notes:
QA1 59 Series (Previously Carrera Shocks 21 Series)
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

These Carrera racing shocks utilize welded ends with non-replaceable heavy duty spherical bearings. Features a gas cell to reduce fade, sophisticated internal valving, and a white painted body. Must be installed in an upright position only. Not for use with coilovers. Made in USA.

  • QA1 59 Series (Previously Carrera Shocks 21 Series)
  • Twin Tube Design
  • 2.00" O.D. Steel Body
  • 1/2" Bearing Ends
  • Compressed Length: 12.13"
  • Extended Length: 19.22"

Econo-Bearing Application Chart (GIF)

Important Messages

  • This product is discontinued.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
