Key Specs

MFG. Part #5576
Shock TypeTwin Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body

Need To Know

Free Shipping on Orders Over $149

Quick and Easy Returns

Details

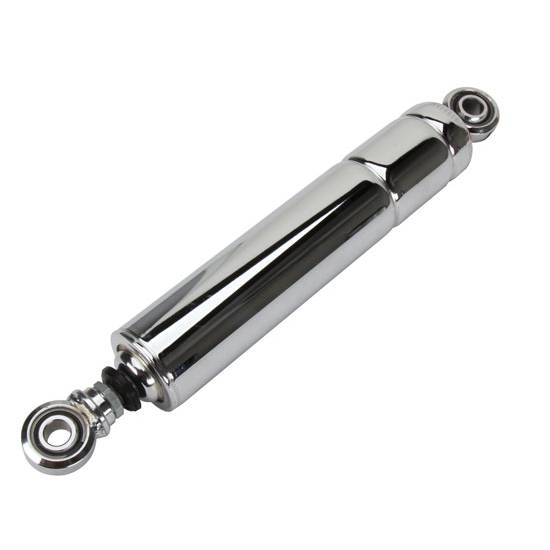

A gas cell Hypershock™ with a chrome plated steel body. This shock will not fade, no matter how long the race. It can be run in any position, including upside down. This is desireable because it reduces unsprung weight by having only the shaft move with the suspension (instead of the shaft standing still and the whole shock body moving). Accepts coil-over mount kits shown on this page.

  • QA1 55 Series (previously Carrera Shocks 31 Series)
  • Compressed Length: 12.54"
  • Extended Length: 19.53"
  • 1-3/8" diameter piston
  • 9/16" hard chrome plated, polished piston rod
  • Twin Tube design
  • 2.00" O.D. steel body
  • Includes 1/2" bearing ends

Carrera Shock Application Chart (GIF)

Specifications

KEY SPECS
MFG. Part #5576
BrandCarrera
Shock TypeTwin Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body
GENERAL
Shock Stroke Range7.00" to 7.99"
Compression Valving6
Rebound Valving6
Shock Stroke7.00
Upper Shock Mount1/2 Inch Eyelet
Lower Shock Mount1/2 Inch Eyelet
Extended Length Range19.00" to 19.99"
Extended Length19.53"
Compressed Length Range12.00" to 12.99"
Compressed Length12.54"
FinishChrome
Coil-Over CompatibleYes
Body Diameter2.00"
Valve Positions6 compression - 6 rebound
Sold in QuantityEach
NotesQA1 55 Series (previously Carrera Shocks 31 Series)
Shock Eyelet Width.625"
Bolt Hole Circle.500"
Hardware IncludedNo
GTIN Code
ColorNatural
