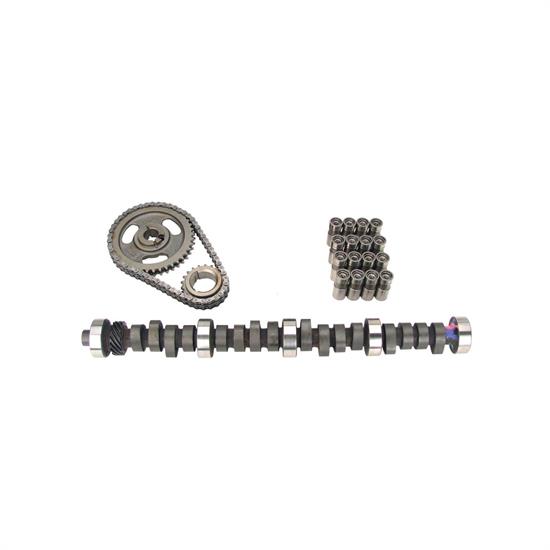

COMP Cams SK31-234-3 Xtreme Energy Hydraulic Camshaft Kit, Ford S/B

COMP Cams SK31-234-3 Xtreme Energy Hydraulic Camshaft Kit, Ford S/B
Ford Small Block V8, Hydraulic Flat Tappet Camshaft Type, 256 Intake Duration, Lifters Included
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Details
Camshaft Type:
Hydraulic Flat Tappet
Intake Duration:
256
Exhaust Duration:
268
RPM Range:
1000 to 5200
Lobe Separation:
110 °
Intake Duration (.050" Lift):
212
Exhaust Duration (.050" Lift):
218
GTIN Code:
036584034483
MFG. Part #:
SK31-234-3
Grind Number:
FS XE256H-10
Intake Valve Lift w/ Rocker Arm Ratio:
0.477"
Exhaust Valve Lift w/ Rocker Arm Ratio:
0.484"
External Ignition Box Required:
No
Valve Springs Required:
Yes
Valve Spring Included:
No
Lifter Type:
Hydraulic Flat Tappet
Lifters Included:
Yes
Retainers Included:
No
Locks Included:
No
Valve Stem Seals Included:
No
Timing Chain and Gears Included:
Yes
Assembly Lubricant Included:
Yes
Rocker Arms Included:
No
Gaskets Included:
No
Sold in Quantity:
Kit
Info
SK31-234-3 - Camshaft Kit, FS XE256H-10.
Ford 289-302 C.I. 8 cyl. 1963-1995. Hydraulic-Strong torque thru low end and mid-range, good idle. Xtreme Energy Hydraulic Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
- Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
- More vacuum allows an increase in duration for improved performance & assists power brakes
- Excellent performance in street carbureted applications
- Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Application
1962-95 Ford 221-302Important Messages
- This item ships directly from the manufacturer. It may take an additional 10 business days for COMP Cams to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
