COMP Cams K12-416-8 Xtreme Marine Hyd. Roller Camshaft Kit, Chevy S/B

#282K124168

COMP Cams K12-416-8 Xtreme Marine Hyd. Roller Camshaft Kit, Chevy S/B

Name: COMP Cams K12-416-8 Xtreme Marine Hyd. Roller Camshaft Kit, Chevy S/B
Brand: COMP Cams
SKU: 282K124168
Price: 1623.95 USD
Availability: InStock

Write a Review

Ask a Question

$1,623.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Roller Tappet Camshaft Type, Lifters Included

See more details

Key Specs

Camshaft Type	Hydraulic Roller Tappet
Intake Duration (.050" Lift)	212
Exhaust Duration (.050" Lift)	218
RPM Range	1200 to 5200
Lobe Separation	112 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams K12-416-8 Details

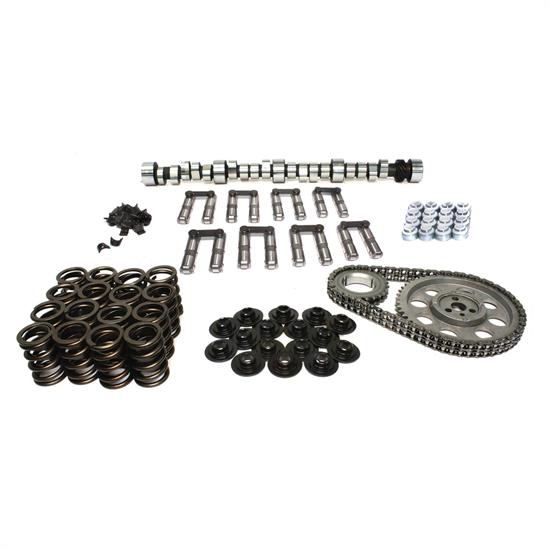

K12-416-8 - Camshaft Kit, CS XR264HR-12.

Chevrolet 262-400 c.i. 8 cyl. 1958-1998. Good for inboard/outboard pleasure boat; Skiing & good economy. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Extremely wide powerband helps get boat on plane while making maximum horsepower
Work against exhaust systems with restrictive back pressure
Power enhancement helps maintain top-end speed for longer distances
Intended for applications where low idle speeds are required

Application

1957-98 Chevy 262-400

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams K12-416-8 Specifications

KEY SPECS
MFG. Part #	K12-416-8
Brand	COMP Cams
Camshaft Type	Hydraulic Roller Tappet
Intake Duration (.050" Lift)	212
Exhaust Duration (.050" Lift)	218
RPM Range	1200 to 5200
Lobe Separation	112 °
Lifter Type	Hydraulic Roller

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.488"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.495"
Sold in Quantity	Kit
Intake Duration	264
Exhaust Duration	270
GTIN Code	036584041573
Grind Number	XM264HR
External Ignition Box Required	No
Valve Springs Required	No
Valve Spring Included	Yes
Lifters Included	Yes
Retainers Included	Yes
Locks Included	Yes
Valve Stem Seals Included	Yes
Timing Chain and Gears Included	Yes
Assembly Lubricant Included	Yes
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No
