Product Summary

351W, Hydraulic Roller Tappet Camshaft Type

    Key Specs

    Camshaft TypeHydraulic Roller Tappet
    Intake Duration (.050" Lift)236
    Exhaust Duration (.050" Lift)240
    RPM Range2200 to 6200
    Lobe Separation110 °

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    COMP Cams CL35-426-8 Details

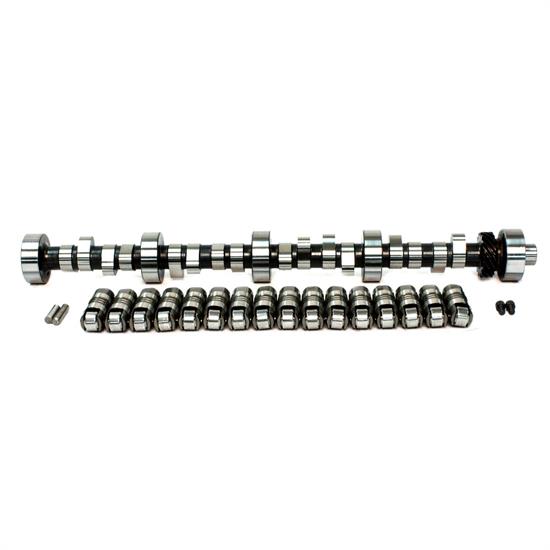

    CL35-426-8 - Cam and Lifter Kit, FW XR288RF-H R10.

    Ford 351W 8 cyl. 1969-1995. Hydraulic Roller-Street/Strip 9:1+ compression, intake, headers, 2800+ converter and 3.73+ gears rough idle. Xtreme Energy Retro-Fit, Hydraulic Roller Camshafts, For engines that DID NOT come from the factory with Hydraulic roller cams, NOT FOR E.F.I. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

    • Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
    • More vacuum allows an increase in duration for improved performance & assists power brakes
    • Excellent performance in street carbureted applications
    • Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.


    1969-95 Ford 351

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    COMP Cams CL35-426-8 Specifications

    MFG. Part #CL35-426-8
    BrandCOMP Cams
    Camshaft TypeHydraulic Roller Tappet
    Intake Duration (.050" Lift)236
    Exhaust Duration (.050" Lift)240
    RPM Range2200 to 6200
    Lobe Separation110 °
    Lifter TypeHydraulic Roller
    Intake Valve Lift w/ Rocker Arm Ratio0.555"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.576"
    Sold in QuantityKit
    Intake Duration288
    Exhaust Duration294
    GTIN Code036584082187
    Grind NumberFW XR288RF-HR10
    External Ignition Box RequiredNo
    Valve Springs RequiredYes
    Valve Spring IncludedNo
    Lifters IncludedYes
    Retainers IncludedNo
    Locks IncludedNo
    Valve Stem Seals IncludedNo
    Timing Chain and Gears IncludedNo
    Assembly Lubricant IncludedNo
    Pushrods Included
    Rocker Arms IncludedNo
    Gaskets IncludedNo
