#28283161

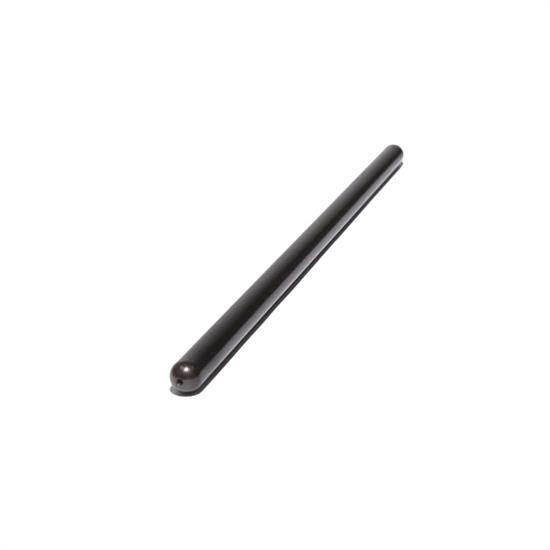

COMP Cams 8316-1 Hi-Tech Pushrod, 5/16 Dia., 8.100 Length, Each
$18.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| MFG. Part # | 8316-1 |
| Tube O.D. | 0.3125" |
| Wall Thickness | 0.08" |
| Overall Length | 8.100" |
| Material Type | Chromoly |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams 8316-1 Details
COMP Cams 8316-1 Details
COMP Cams Hi-Tech Oil Restricting Pushrods feature 0.050" oil holes, which are half the size of standard Hi-Tech Pushrods. These pushrods maintain the consistent Hi-Tech Pushrod features, including one-piece 4130 chromemoly material with a wall thickness of .080" and a 60 Rockwell hardness. To avoid confusion, each oil restricted pushrod is clearly labeled with length and diameter. For each engine platform COMP Cams offers five different pushrod lengths to meet any need.
- One-piece construction from .080" wall seamless chromemoly
- Heat-treated for extended durability & guide plate compatibility
- Precision formed and reinforced 5/16" ball type ends
- Black oxide finished and laser etched part number & length
- Ideal for serious street performance and race applications
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
COMP Cams 8316-1 Specifications
COMP Cams 8316-1 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 8316-1 |
| Brand | COMP Cams |
| Tube O.D. | 0.3125" |
| Wall Thickness | 0.08" |
| Overall Length | 8.100" |
| Material Type | Chromoly |
| Top Tip Style | Ball |
| Bottom Tip Style | Ball |
| Heat Treated | Yes |
| GENERAL | |
| GTIN Code | 036584132936 |
| Intake Length | 8.100" |
| Exhaust Length | 8.100" |
| Sold in Quantity | Each |
| For Use with Guideplates | Yes |
| Bottom Tip Diameter | 0.312" |
| Top Tip Diameter | 0.312" |
| Tip Attachment | Formed |
| Oiling | Yes |
| One-Piece Pushrod | Yes |
| Tapered | No |
