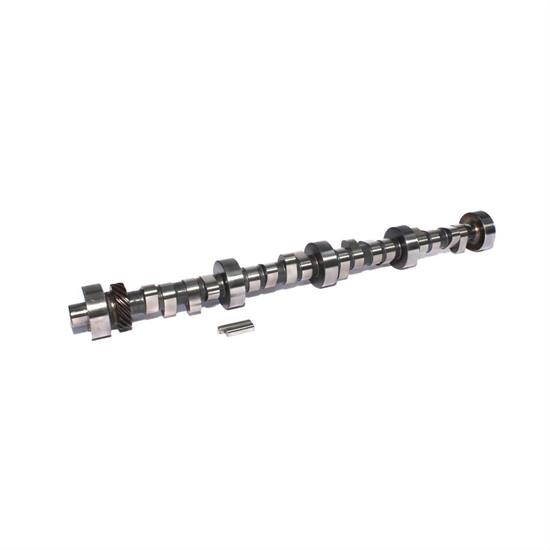

COMP Cams 35-424-8 Xtreme Energy Hyd. Roller Camshaft, Ford 351W

#282354248

COMP Cams 35-424-8 Xtreme Energy Hyd. Roller Camshaft, Ford 351W

Name: COMP Cams 35-424-8 Xtreme Energy Hyd. Roller Camshaft, Ford 351W
Brand: COMP Cams
SKU: 282354248
Price: 549.95 USD
Availability: InStock

Write a Review

1 Question

Duration:

276/282

264/270 294/300

$549.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Roller Tappet Camshaft Type

See more details

Key Specs

Camshaft Type	Hydraulic Roller Tappet
RPM Range	1800-5800
Intake Duration (.050" Lift)	224
Exhaust Duration (.050" Lift)	230
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 35-424-8 Details

35-424-8 - Camshaft, FW XR276RF-HR10.

Xtreme Energy Retro-Fit, Hydraulic Roller Camshafts, For engines that DID NOT come from the factory with hydraulic Roller cams, NOT FOR E.F.I. Hydraulic Roller-Strong mid-range performance, Street Machines with 3.55+ gears, 2200+ converter. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
More vacuum allows an increase in duration for improved performance & assists power brakes
Excellent performance in street carbureted applications
Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams 35-424-8 Specifications

KEY SPECS
MFG. Part #	35-424-8
Brand	COMP Cams
Camshaft Type	Hydraulic Roller Tappet
RPM Range	1800-5800
Intake Duration (.050" Lift)	224
Exhaust Duration (.050" Lift)	230
Lobe Separation	110 °

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.513"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.513"
Intake Duration	276
Exhaust Duration	282
Sold in Quantity	Each
Grind Number	XR2726RF-HR
GTIN Code	036584082101
External Ignition Box Required	No
Valve Springs Required	Yes

Ratings & Reviews

Be the first to write a review.

Fitment

1988-1989 DeTomaso Pantera

Ford 351W

1978-1996 Ford Bronco

Ford 351W

1969-1974 Ford Country Sedan

Ford 351W

1969-1974 Ford Country Squire

Ford 351W

1969-1972 Ford Custom

Ford 351W

1969-1977 Ford Custom 500

Ford 351W

1975-1983 Ford E-100 Econoline

Ford 351W

1975-1983 Ford E-100 Econoline Club Wagon

Ford 351W

1975-1996 Ford E-150 Econoline

Ford 351W

1975-1996 Ford E-150 Econoline Club Wagon

Ford 351W

1975-1996 Ford E-250 Econoline

Ford 351W

1975-1991 Ford E-250 Econoline Club Wagon

Ford 351W

1975-1996 Ford E-350 Econoline

Ford 351W

1977-1996 Ford E-350 Econoline Club Wagon

Ford 351W

1996 Ford Econoline Super Duty

Ford 351W

1975-1976 Ford Elite

Ford 351W

1978-1979 Ford F-100

Ford 351W

1981 Ford F-100

Ford 351W

1978-1996 Ford F-150

Ford 351W

1978-1997 Ford F-250

Ford 351W

1978-1997 Ford F-350

Ford 351W

1969-1970 Ford Fairlane

Ford 351W

1969-1970 Ford Falcon

Ford 351W

1969-1974 Ford Galaxie 500

Ford 351W

1972-1976 Ford Gran Torino

Ford 351W

1975-1977 Ford Granada

Ford 351W

1969-1986 Ford LTD

Ford 351W

1987-1991 Ford LTD Crown Victoria

Ford 351W

1977-1979 Ford LTD II

Ford 351W

1969-1973 Ford Mustang

Ford 351W

1995 Ford Mustang

Ford 351W

1969-1974 Ford Ranch Wagon

Ford 351W

1969-1979 Ford Ranchero

Ford 351W

1977-1979 Ford Thunderbird

Ford 351W

1969-1976 Ford Torino

Ford 351W
