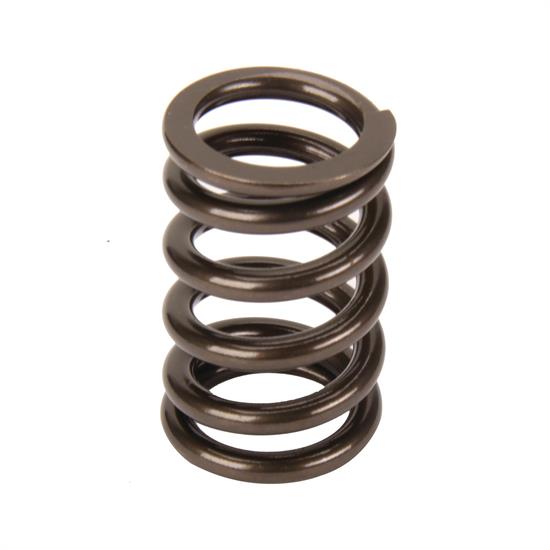

COMP Cams 26975-16 GM604 Valve Springs, 1.320 x .920 Diameter, Set/16
COMP Cams 26975-16 GM604 Valve Springs, 1.320 x .920 Diameter, Set/16
COMP Cams

|

#28226975

COMP Cams 26975-16 GM604 Valve Springs, 1.320 x .920 Diameter, Set/16

Quantity:

Set (16)

Each

$400.95

/set

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

1.32" Outside Diameter, 365 lbs. Spring Rate

    See more details

    Key Specs

    MFG. Part #26975-16
    BrandCOMP Cams
    Outside Diameter1.32"
    Spring Rate365 lbs.
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    COMP Cams 26975-16 Details

    COMP Cams­® 26975 springs provide increased control and durability for GM crate circle track applications as well as a variety of Small Block Chevy/Small Block Ford engines. They are designed as a performance upgrade over stock springs for higher RPM applications. Made from a high-tensile strength chrome silicon steel, the #26975 Valve Springs feature a much higher life expectancy than tool steel springs. State-of-the-art grinding and finishing processes, along with added micro peening, also increase durability. In addition to street use, these springs are also a perfect choice for GM 604 crate engines running in stock or modified circle track divisions.

    • Increased control and durability for GM crate circle track applications
    • Performance upgrade over stock springs for higher RPM applications
    • High-tensile strength chrome silicon steel
    • Perfect for GM 604 crate engines running in stock or modified circle track divisions
    • O.D.: 1.320"
    • I.D.: .920"
    • Seat Load: 103 @ 1.780
    • Open Load: 325 @ 1.160
    • Coil Bind: 1.100
    • Rate: 365

    Guides & Documents

    Warranty (COMP Cams)

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CARB warning

    COMP Cams 26975-16 Specifications

    KEY SPECS
    MFG. Part #26975-16
    BrandCOMP Cams
    Outside Diameter1.32"
    Spring Rate365 lbs.
    GENERAL
    Seat Pressure103 lbs at 1.780"
    Sold in QuantitySet
    GTIN Code036584258766
