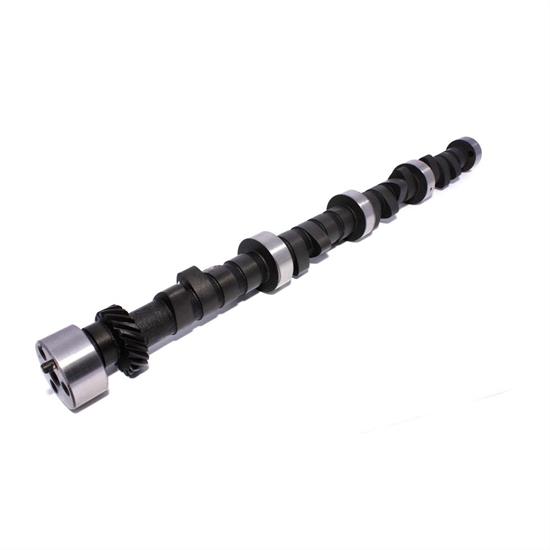

COMP Cams 23-226-4 Xtreme Energy Hydraulic Camshaft, Chrysler
COMP Cams 23-226-4 Xtreme Energy Hydraulic Camshaft, Chrysler

COMP Cams 23-226-4 Xtreme Energy Hydraulic Camshaft, Chrysler

Chrysler Big Block V8, Hydraulic Flat Tappet Camshaft Type, 2800 to 6800 RPM Range

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
COMP Cams 23-226-4 Xtreme Energy Hydraulic Camshaft, Chrysler
COMP Cams 23-226-4 Xtreme Energy Hydraulic Camshaft, Chrysler
Zoomed In Image
We estimate this item will ship on or before June 11th.
Part # 282232264
$144.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for COMP Cams to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Camshaft Type:
Hydraulic Flat Tappet
RPM Range:
2800 to 6800
Intake Duration:
294
Exhaust Duration:
306
Lobe Separation:
110 °
Grind Number:
XE294H
Intake Duration @ .050" Lift:
250
Exhaust Duration @ .050" Lift:
256
Intake Valve Lift w/ Rocker Arm Ratio:
0.519"
Exhaust Valve Lift w/ Rocker Arm Ratio:
0.524"
MFG. Part #:
23-226-4
GTIN Code:
036584126522
Computer-Controlled Compatible:
No
Valve Springs Required:
Yes
Sold in Quantity:
Each

Info

COMP Cams Xtreme Energy XE294H-10 Hydraulic Camshaft for Big Block Chrysler, Three Bolt.

All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

  • Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
  • More vacuum allows an increase in duration for improved performance & assists power brakes
  • Excellent performance in street carbureted applications
  • Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Application

1959-78 Chrysler 383-440
1960-78 Plymouth 383-440
1959-79 Dodge 383-440
Some parts are not legal for use in California or other states with similar laws/regulations
