Product Summary

604, Hydraulic Roller Tappet Camshaft Type

    Key Specs

    MFG. Part #08-697-11
    Camshaft TypeHydraulic Roller Tappet
    RPM Range4000-7000
    Intake Duration276
    Exhaust Duration284

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

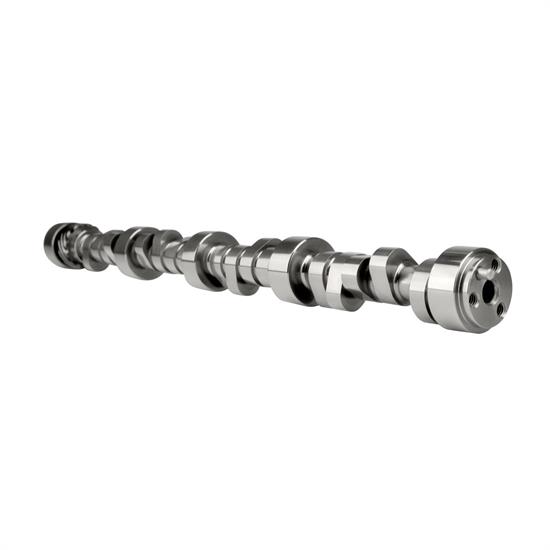

    Hustler 603/604 Crate Engine Hydraulic Roller Stage 2 Camshaft

    • For Chevrolet 604 Crate Engine
    • Cam Type: Hydraulic Roller
    • Basic Operating RPM Range: 4000-7000
    • Intake Duration at .050 Inch Lift: 219
    • Exhaust Duration at .050 Inch Lift: 231
    • Advertised Intake Duration: 276
    • Advertised Exhaust Duration: 284
    • Lobe Separation: 112
    • Intake Valve Lift: 0.498
    • Exhaust Valve Lift: 0.531
    • Lifters Included: No
    • Valve Springs Required: No
    • Assembly Lubricant Included: No
    • Camshaft Gear Attachment: 3-Bolt
    • Camshaft Material: Billet Steel
    • Lifter Style: Roller

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #08-697-11
    BrandCOMP Cams
    Camshaft TypeHydraulic Roller Tappet
    RPM Range4000-7000
    Intake Duration276
    Exhaust Duration284
    GENERAL
    Intake Duration (.050" Lift)219
    Exhaust Duration (.050" Lift)231
    Intake Valve Lift w/ Rocker Arm Ratio0.498"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.531"
    Lobe Separation112 °
    GTIN Code00036584387541
    Valve Springs RequiredNo
    Gear Attachment3-Bolt
    Sold in QuantityEach
