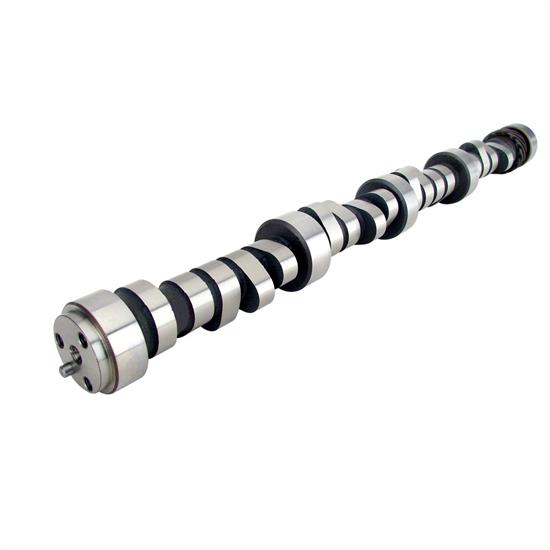

COMP Cams 01-424-8 Xtreme Energy Hyd. Roller Camshaft, Chevy B/B
COMP Cams 01-424-8 Xtreme Energy Hyd. Roller Camshaft, Chevy B/B

COMP Cams 01-424-8 Xtreme Energy Hyd. Roller Camshaft, Chevy B/B

454 Chevy Big Block V8, Hydraulic Roller Tappet Camshaft Type, 2800 to 6100 RPM Range

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
COMP Cams 01-424-8 Xtreme Energy Hyd. Roller Camshaft, Chevy B/B
COMP Cams 01-424-8 Xtreme Energy Hyd. Roller Camshaft, Chevy B/B
Zoomed In Image
We estimate this item will ship on or before December 19th.
Part # 282014248
$289.99
$297.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for COMP Cams to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Camshaft Type:
Hydraulic Roller Tappet
RPM Range:
2800 to 6100
Intake Duration:
294
Exhaust Duration:
300
Lobe Separation:
110 °
Grind Number:
G6 XR294HR-10
Intake Duration (.050" Lift):
242
Exhaust Duration (.050" Lift):
248
Intake Valve Lift w/ Rocker Arm Ratio:
0.54"
Exhaust Valve Lift w/ Rocker Arm Ratio:
0.56"
MFG. Part #:
01-424-8
GTIN Code:
036584063483
External Ignition Box Required:
No
Valve Springs Required:
Yes
Sold in Quantity:
Each

Info

COMP Cams Xtreme Energy XE294HR-10 Camshaft for Gen VI Big Block Chevy.

Xtreme Energy Hydraulic Roller Camshafts. Hydraulic Roller-Best for serious Street/ Strip use with 10.5:1 and 3000+ stall. Needs good intake, headers and port work. Hydraulic Roller - Xtreme Energy: Best for serious street/strip use with 10.5:1+ compression and 3000+ stall. Needs good intake, headers and ported heads.

  • Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
  • More vacuum allows an increase in duration for improved performance & assists power brakes
  • Excellent performance in street carbureted applications
  • Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Application

1996-99 Chevy 454
Some parts are not legal for use in California or other states with similar laws/regulations
