Product Summary

Universal Fit, Double Pass Radiator Style, Aluminum

    Key Specs

    MFG. Part #8200260075
    Radiator StyleDouble Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    FinishNatural

    Need To Know

    This Product Will Ship Free

    Quick and Easy Returns

    Details

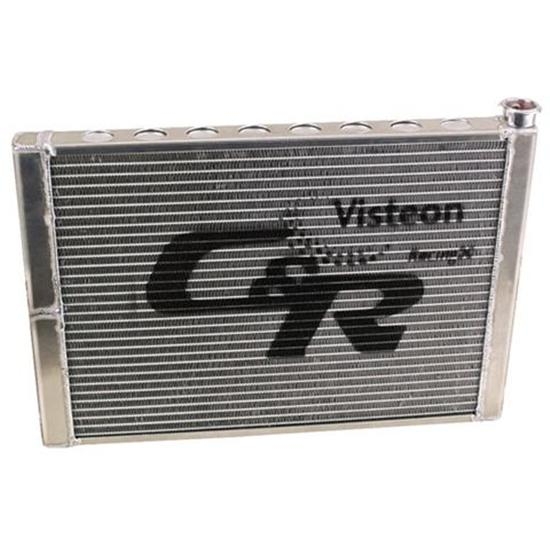

    The C&R Racing Double Pass Aluminum Cross Flow Radiator features a single, female, 20-port fitting with included 1-1/2" neck for the inlet. The lower hose neck measures 1-3/4" and the inlet and outlet are on the same side.

    The width measurement (26") is measured from outside of tank to outside of tank, the entire radiator, not just the core.

    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

    Aluminum Fan Shroud Kits available:

    For 26" radiator, fan shroud kit # 917-4021



    Specifications

    KEY SPECS
    MFG. Part #8200260075
    BrandC&R Racing
    Radiator StyleDouble Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    FinishNatural
    GENERAL
    Inlet LocationUpper passenger side
    Outlet LocationLower passenger side
    Row Quantity2
    Overall Width Range26.00" to 26.99"
    Overall Width26.00"
    Overall Height Range19.00" to 19.99"
    Overall Height19.00"
    Overall Thickness3.13"
    Core Width Range22.00" to 22.99"
    Core Width22.25"
    Core Height Range18.00" to 18.99"
    Core Height18.50"
    Core Thickness2.25"
    Transmission CoolerNo
    Filler Neck Height1.00"
    Inlet Size1.50
    Fan IncludedNo
    Sold in QuantityEach
