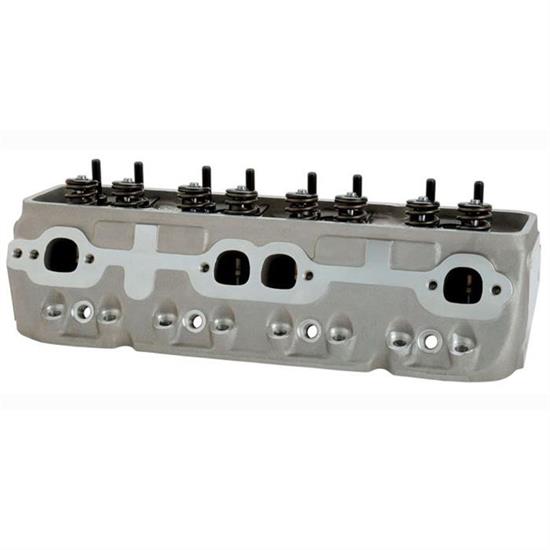

Brodix 1021007 IK Series Pkg Cylinder Heads, 200cc, 125 lbs
Brodix 1021007 IK Series Pkg Cylinder Heads, 200cc, 125 lbs

Brodix 1021007 IK Series Pkg Cylinder Heads, 200cc, 125 lbs

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Brodix 1021007 IK Series Pkg Cylinder Heads, 200cc, 125 lbs
Brodix 1021007 IK Series Pkg Cylinder Heads, 200cc, 125 lbs
Zoomed In Image
We estimate this item will ship on or before October 31st.
Part # 2351021007
Save $23
$999.99
$1,023.00
pair
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Brodix Cylinder Heads to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Combustion Chamber:
70cc
Intake Valve Diameter:
2.02"
Exhaust Valve Diameter:
1.6"
Spark Plug Style:
Straight
Sold in Quantity:
Pair
MFG. Part #:
1021007
CNC-Machined Combustion Chamber:
No
CNC- Machined Intake Runner:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
D-port
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Maximum Lift:
0.575"
Outside Diameter of Outer Spring:
1.47"
Damper Spring Included:
No
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Chromoly Steel
Locks Included:
Yes
Lock Style:
7 Degree
Valve Stem Seal Type:
Positive Stop
Rocker Arm Studs Included:
Yes
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Valve Guide Material:
Phosphorous Bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile Iron
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Intake Valve Angle:
23
Exhaust Valve Angle:
23
Intake Runner Volume:
200 cu. in.
CNC-Machined Exhaust Runner:
No
Valve Stem Seals Included:
Yes
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes

Info

These Brodix's small block Chevy compatible heads offer the only two things that matter, performance and price!
They include a revolutionary ultra-casting, versatile 180 cc or 200 cc intake ports that are specifically designed for optimum versatility, and 64 cc or 70 cc combustion chambers that allow the use of several types of fuels.

The all-new 100% CNC ported “Wild Thing™” (BP IK 210) bridges the gap between Pro Street heads and complete line of race heads. These heads feature 210 cc intake ports and flow 287 cfm while utilizing all standard components.

Standard features are A-356 virgin aluminum alloy, phosphorous bronze valve guides, valve seats for use with unleaded fuel, ends milled and drilled for accessories, and a straight spark plug angle. The combustion chambers are available as large as 74 cc. These are the most affordable high quality aluminum cylinder heads on the market.

  • 200cc
  • 125 lbs
  • Sold each
Some parts are not legal for use in California or other states with similar laws/regulations
