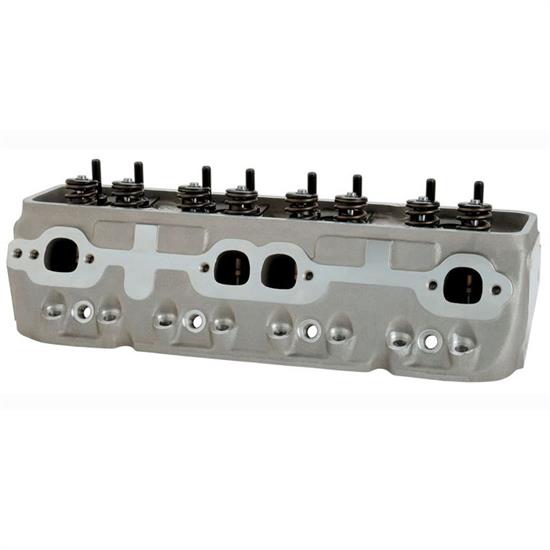

Brodix 1021002 IK Series Bare Cylinder Heads, 180cc, 100 lbs
Brodix 1021002 IK Series Bare Cylinder Heads, 180cc, 100 lbs

Brodix 1021002 IK Series Bare Cylinder Heads, 180cc, 100 lbs

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Brodix 1021002 IK Series Bare Cylinder Heads, 180cc, 100 lbs
Brodix 1021002 IK Series Bare Cylinder Heads, 180cc, 100 lbs
Zoomed In Image
We estimate this item will ship on or before May 3rd.
Part # 2351021002
$999.99
pair
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Brodix to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Finish:
Natural
Combustion Chamber Volume:
70cc
Intake Runner Volume:
180cc
Combustion Chamber Volume Range:
70cc - 79cc
Intake Runner Volume Range:
180cc - 189cc
CNC-Machined Runners:
No
CNC-Machined Combustion Chamber:
No
Spark Plug Style:
Straight
Intake Port Location:
Standard
Exhaust Port Shape:
D-port
Exhaust Port Location:
Standard
Intake Valve Diameter:
2.02"
Intake Valves Included:
Yes
Intake Valve Angle:
23
Exhaust Valve Diameter:
1.6"
Exhaust Valves Included:
Yes
Exhaust Valve Angle:
23
Valve Spring Included:
Yes
Spring Diameter:
1.25"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Maximum Lift:
0.525"
Machined for O-Ring:
No
Valve Seat Machine Style:
3-angle
Valve Seats Machined:
Yes
Valve Seat Material:
Ductile Iron
Valve Stem Seals Included:
Yes
Valve Stem Seal Type:
Positive Stop
Valve Guides Included:
Yes
Valve Guide Material:
Phosphorous Bronze
Locks Included:
Yes
Lock Style:
7 Degree
Retainers Included:
Yes
Retainer Material:
Chromoly Steel
Guideplates Included:
Yes
Rocker Arms Included:
No
Rocker Arm Studs Included:
Yes
Rocker Arm Nuts Included:
No
Oiling Style:
Through Pushrod
Heat Crossover:
No
Steam Holes Drilled:
No
Accessory Bolt Holes Drilled:
Yes
Sold in Quantity:
Pair
MFG. Part #:
1021002

Info

These Brodix's small block Chevy compatible heads offer the only two things that matter, performance and price!
They include a revolutionary ultra-casting, versatile 180 cc or 200 cc intake ports that are specifically designed for optimum versatility, and 64 cc or 70 cc combustion chambers that allow the use of several types of fuels.

The all-new 100% CNC ported “Wild Thing™” (BP IK 210) bridges the gap between Pro Street heads and complete line of race heads. These heads feature 210 cc intake ports and flow 287 cfm while utilizing all standard components.

Standard features are A-356 virgin aluminum alloy, phosphorous bronze valve guides, valve seats for use with unleaded fuel, ends milled and drilled for accessories, and a straight spark plug angle. The combustion chambers are available as large as 74 cc. These are the most affordable high quality aluminum cylinder heads on the market.

  • 180cc
  • 100 lbs
  • Sold each
Some parts are not legal for use in California or other states with similar laws/regulations
