Product Summary

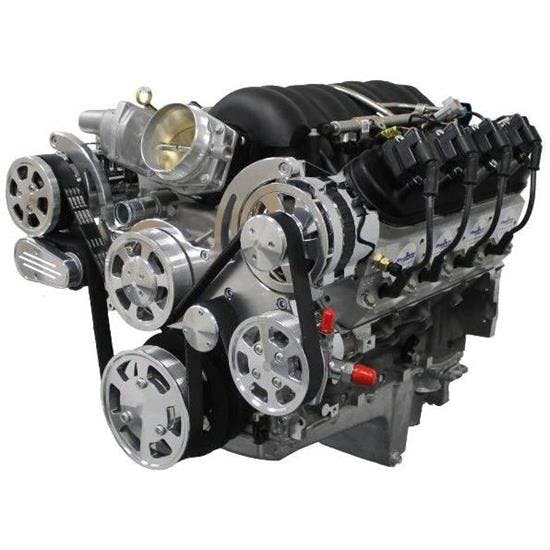

LS3, Long Block Crate Engine Type, 495 ft./lbs. Torque

  • BluePrint's complete LS crate engine/controller packages contain all components and the proper calibration to get your muscle car or truck tearing up the streets in no time
  • Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results
  • 530 Horsepower / 495 ft-lbs Torque
  • New GM Aluminum 6.2L block - 376 CI GM LS3 Style
  • ECU is unlocked so your dyno shop can further refine your tune after your swap is complete into your vehicle

Comes as a Kit

Key Specs

BrandBluePrint Engines
Crate Engine TypeLong Block
Engine Displacement376 cu. in.

Need To Know

Truck Ship

Truck shipments must be pre-paid with a credit card, certified check or money order

Quick and Easy Returns

Return Policy

Details

At BluePrint Engines, we strive to make your LS swap as simple as possible. BluePrint's complete LS crate engine/controller packages contain all components and the proper calibration to get your new BPLS3760CTFK installed in your muscle car or truck, and have you tearing up the streets in no time.

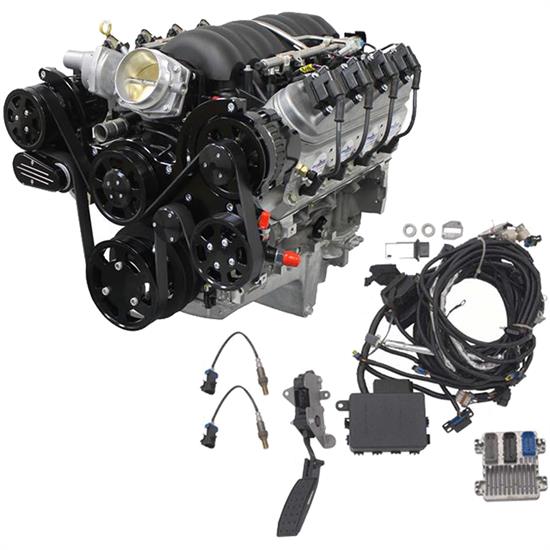

Kit Includes:

  • (1) BluePrint PSLS3760CTFK 376CI LS3 Engine, Dressed Longblock, Polished Pulleys
  • (1) BluePrint BPPLS530 LS Engine Controller Kit



BluePrint PSLS3760CTFK 376CI LS3 Engine

376 CI GM LS3 Style Crate Engine, Aluminum Heads, Roller Cam, 3.2L

Overview:

  • Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results
  • HP & Torque: 530 HP / 495 FT-LBS
  • Compression Ratio: 10.7:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Nodular Iron Crankshaft
  • Hypereutectic Pistons

Block:

  • New GM Aluminum 6.2L block
  • OEM Block Machined in the USA!
  • 6-Bolt Main
  • 1-Piece Rear Main Seal

Rotating Assembly:

  • Nodular Iron crankshaft
  • 3.622" Stroke
  • 6.098" connecting rods w/ 150,000 psi bolts
  • Hypereutectic Pistons
  • Internally Balanced

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads -PS8015
  • 72cc chamber
  • 2.165" intake/1.600" exhaust valves
  • 259cc intake/102cc exhaust runners

Cam Specs:

  • Cam Type: Roller Cam
  • .612 Intake .585 Exhaust
  • 225 Intake / 238 Exhaust duration
  • @ .050 - 113 degree lobe separation, 110 ICL

Also Includes:

  • GM Musclecar Swap Oil Pan
  • 90mm DBW Throttle Body
  • Loaded Intake Manifold
  • Fuel Injectors and Rail
  • Coil Packs
  • Spark Plugs and Wires
  • Waterpump
  • Harmonic Balancer

Warranty:

30 month / 50,000 mile



BluePrint BPPLS530 LS Engine Controller Kit

  • Complete LS controller package specially calibrated ECU set to the optimum tuning required for the LS 530 HP engine
  • ECU is unlocked so your dyno shop can further refine your tune after your swap is complete into your vehicle

Note: LS controller package is for engine control only. Does not contain any transmission or body control. The ECU comes with calibration that is optimal for our PSLS3760CTF engine, however, please note that vehicle parameters such as gearing, tire size, vehicle weight, air intake, headers, etc. may necessitate additional tuning once installed into your specific vehicle. The included ECU is unlocked for further refinement at your local dyno shop if required.

Includes:

  • ECU
  • Engine Harness
  • Mass Air Flow Meter and Mounting Boss
  • Accelerator Pedal Assembly
  • Oxygen Sensors and Bungs



Charts

Specifications

KEY SPECS
BrandBluePrint Engines
Crate Engine TypeLong Block
Engine Displacement376 cu. in.
GENERAL
Horsepower530 horsepower
Compression Ratio10.7:1
Torque495 ft./lbs.
Camshaft TypeHydraulic Roller Tappet
Cylinder Head MaterialAluminum
Piston MaterialHypereutectic Aluminum
Crankshaft MaterialNodular Iron
Combustion Chamber Volume72cc
Camshaft Duration (.050 in)225° intake / 238° exhaust
Camshaft Lift (in).612 intake / .585 exhaust
Connecting Rod MaterialForged Steel
Warranty30 month / 50,000 miles
Valve Covers IncludedYes
AssembledYes
Engine BalanceInternal
Rear Main Seal Style1-piece
Spark Plugs IncludedYes
Spark Plug Wires IncludedYes
Computer IncludedYes
Wiring Harness IncludedYes
CNC-Machined Combustion ChamberNo
Intake Runner Volume295cc
BlockOEM Machined Block, USA made, 6-bolt main
Sold in QuantityKit
