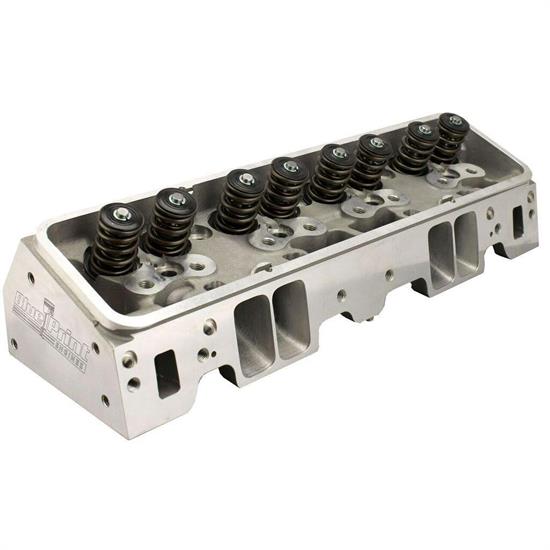

BluePrint PS8003 Muscle Series 235cc SB Chevy Head, Assembled
Chevy Small Block V8, Assembled Cylinder Head Style, Aluminum, Natural, CNC-Machined Runners
- This item ships directly from the manufacturer. It may take an additional 30 business days for BluePrint Engines to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
- Maximum output for less money!
- Designed and produced by BluePrint Engines
- CNC-machined combustion chambers and intake runners
- Fully assembled with heavy duty components
- Backed by our full 12-month limited warranty
Intake Runner Volume (cc): 235cc
Intake Port Location: Standard
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.125 in.
CNC Machined Intake Runner: Yes
Runner Volume (cc): CNC- 66cc
Exhaust Valve Diameter (in): 1.600 in.
Exhaust Valves Included: Yes
CNC-Machined Exhaust Runner: Yes
Port Shape: Square-Port
Exhaust Port Location: Standard
Combustion Chamber Volume (cc): 69cc
CNC-Machined Combustion Chamber: Yes
Maximum Valve Lift (in): .650 in.
Intake Valve Angle: 23 Degrees
Exhaust Valve Angle: 23 Degrees
Valve Guides Included: Yes
Valve Guide Material: Manganese Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-Angle
Valve Seat Material: Chrome Nickle
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Viton® Fluoroelastomer
Valve Springs Included: Yes
Spring Pressure Open: 360 - 380 @ 1.150
Spring Pressure Closed: 125-135 @ 1.800
Outside Diameter of Outer Spring (in): 1.295 in.
Damper Spring Included: Yes
Number of Springs per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromemoly Steel
Locks Included: Yes
Lock Style: 7 Degree
Pushrods Included: No
Guide Plates Included: Yes
Guide Plate Pushrod Size (in): 5/16 in.
Rocker Arm Studs Included: Yes
Rocker Arm Stud Size (in): 7/16 in.
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Spark Plug Style: Straight – .750 Reach Gasket
Cover Mounting Style: Perimeter & Center Bolt
Accessory Bolt Holes Drilled: Yes
Oiling Style: Through Pushrod
Machined for O-Ring: No
Heat Crossover: No
