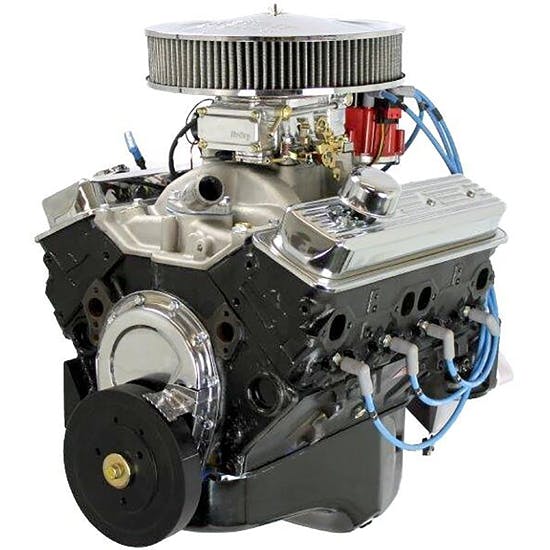

BluePrint Engines BP3501CTC1 S/B Chevy Vortec 350 Deluxe Crate Engine

BluePrint Engines builds high-performance crate engine to replace your tired old factory engine! These crate engines are high-performance drop-in engines offering substantially more horsepower than the factory original. Crate engines or crate motors from BluePrint Engines offer a custom builder, hot rodder, or kit car builder an engine that is ready to drop in the vehicle. BluePrint crate engines come in several levels of dress - from a shortblock all the way to complete with all the components that will be needed to start and run the engine very quickly. No extensive cleaning or installation of parts is required. In addition, BluePrint crate engines are dyno-tested and are shipped with a documentation of their high-performance power curve.

DESCRIPTION

• HP & Torque: 365 HP / 405 FT LBS
• Compression Ratio: 9.1:1
• Cast Iron Heads
• Roller Cam
• Cast Steel Crank
• Hypereutectic Pistons

BLOCK:

• NEW BluePrint Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.000" Bore
• 1-Piece Rear Main Seal
• Mech fuel pump provision: Yes
• Passenger Side Dipstick
• Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

• Cast steel crankshaft
• 3.480" Stroke
• OEM type 5.700" connecting rods
• Hypereutectic pistons
• Internal Front/ External Rear

CYLINDER HEADS:

• Vortec cast iron heads; 64cc chamber
• Hardened retainers and springs
• 1.94 intake valves
• 1.50 exhaust valves

CAM SPECS:

• Cam Type: Roller
• .495 Intake .502 Exhaust
• 220 Intake / 224 Exhaust duration
• @ .050 - 114 degree lobe separation
• Using 1.5 rockers

IGNITION TIMING:

• 10-16 degrees initial, 32 -34 total

ALSO INCLUDES:

• Valve covers
• Oil pan
• Thermostat, thermostat housing
• Timing cover
• Chrome air cleaner
• Intake Manifold
• 600cfm carburetor
• HEI Distributor
• Spark plugs and wires
• Harmonic balancer
