Add to Cart
$3,689.99
BluePrint Budget SBC 355 Crate Engine Package, FiTech EFI
BluePrint Budget SBC 355 Crate Engine Package, FiTech EFI

BluePrint Budget SBC 355 Crate Engine Package, FiTech EFI

350 Chevy Small Block V8, 350 cu. in. Engine Displacement, 9.5:1 Compression Ratio

0 Reviews | 0 Answered Questions
On Backorder
Select your vehicle to verify fitment.
Select Vehicle
BluePrint Budget SBC 355 Crate Engine Package, FiTech EFI
BluePrint Budget SBC 355 Crate Engine Package, FiTech EFI
Zoomed In Image
We estimate this item will ship on or before July 18th.
Part # 91602093
$3,689.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Horsepower:
310 horsepower
Torque:
360 ft./lbs.
Maximum RPM:
5400
Engine Displacement:
350 cu. in.
Crate Engine Type:
Deluxe Crate Engine
Compression Ratio:
9.5:1
Camshaft Type:
Hydraulic Flat Tappet
Cylinder Head Material:
Cast Iron
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Cast Iron
Distributor Included:
Yes
Warranty:
30 month/50,000 mile
Sold in Quantity:
Kit
Notes:
Includes (8) pre-made spark plug cables (both ends 90 deg.). No coil wire included.
Assembled:
Yes
Cylinder Heads Included:
Yes
Rear Main Seal Style:
1-piece
Throttle Body Included:
Yes
Air Cleaner Included:
No
Spark Plugs Included:
No
Spark Plug Wires Included:
Yes
Intake Style:
Electronic Fuel Injection
Camshaft Included:
Yes
Block:
4 bolt main, 1-piece rear main seal

Info

What's better than classic cubic inches and trusted EFI to power your ride?  These BluePrint/FiTech crate engine packages from Speedway Motors are sure to please, not only you and your vehicle but your wallet as well.

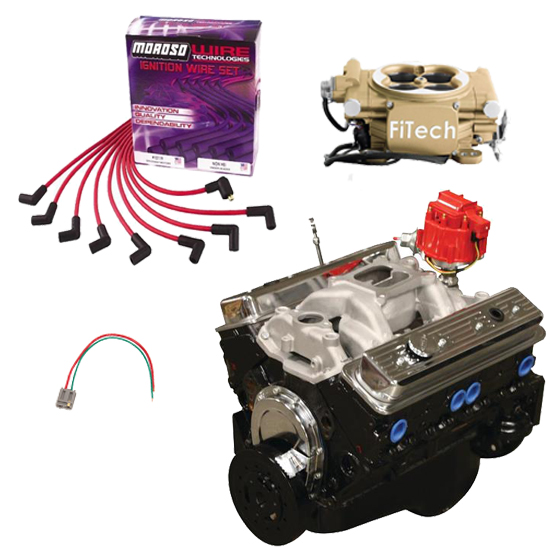

Kit Includes:

  • (1) BluePrint Budget 355 Small Block Chevy Crate Engine
  • (1) FiTech 30005 Easy Street EFI Throttle Body System, 600HP
  • (1) Moroso HEI Under Header Spark Plug Wire Set, Black
  • (1) GM HEI Distributor Wiring Pigtail Connector, 10 Inch

BluePrint 355 Crate Engine

  • 310 hp @ 5400 rpm
  • 360 ft.-lbs. @ 3900 rpm
  • 4-bolt main, 1-piece rear main seal
  • Passenger side dipstick
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness
  • BluePrint premium cast iron crankshaft
  • Hypereutectic pistons
  • Chevy heavy beam rods with 150,000 PSI bolts
  • Aluminum dual plane intake
  • Harmonic balancer
  • Hydraulic flat tappet cam
  • .480 intake / .486 exhaust & 229 intake / 230 exhaust duration @.050
  • Heavy duty double roller timing set
  • BluePrint premium center bolt cast iron
  • Hardened retainers and springs
  • 2.02 swirl polished intake valves
  • 1.60 swirl polished exhaust valves
  • 9.5 to 1 compression
  • New valve covers, oil pan and timing cover
  • Brass freeze plugs
  • 153 tooth flexplate w/ single 3-bolt converter pattern 10-3/4" bolt circle
  • New HEI distributor

Crate Engine Installation Guide

Truck Freight Shipping Charges Apply - click here for details.

FiTech EFI Throttle Body System

FiTech Easy Street EFI 600HP System is the perfect solution to bring new life to your build, with just a touch of classic styling. They arrive pre-programmed for an out of the box performance experience and can be set up in a matter of minutes. FiTech Easy Street EFI System features 4 flow matched 80-lb injectors and utilizes Annular Swirl Wet Flow technology for complete fuel atomization. Easy Street series throttle body is finished in that classic carburetor gold and fits on any 4 barrel intake manifold, providing you the best combination of budget minded, modern fuel injection technology!

  • Classic Carburetor Gold Finish.
  • Four FiTech 80-lb flow matched injectors.
  • Extreme self learning for wide range super-fast dial in correction.
  • Suitable for crate engines and performance engines.
  • Pre-programmed wih Bolt-N-Go technology for out of the box
    performance with minimal input required
  • Easy tach input,reads tach signal from COIL,HEI, CDI,and many other
    ignition brands (NO TIMING CONTROL)
  • For non boosted engines-natural aspirated applications ONLY
  • Wide band O2 sensor with mounting kit
  • On board fuel pump driver with PWM
  • Annular discharge design
  • HandHeld tunning module for performance tunning
  • 1 fan control
  • E85 compatible (30% reduction in HP capacity of fuel system and EFI)

These fuel injection units are backed by a 1 year manufacturer warranty. Tuning and technical support is available through the phone and online support by the way of tech articles and emails. It's out-of-the-box compatible with everything from a 200 horsepower, small cubic inch factory original motor all the way up to a 600 HP engine build. FiTech Go Street EFI will provide lower idle rpm, cleaner start up and crisp throttle response - features the best carb tuners in the world can’t match and only come with FiTech technology.

5213005 Instructions (PDF)




Moroso Spark Plug Wire Set

If you have ever tried to put plug wires together yourself, you know how fustrating it can be. These pre-assembled Moroso 8mm spiral core wires are fiberglass reinforced with a silicone outer layer. Wires have 90° boots on both ends. Available in black for small block Chevy.
  • Spiral Core Conductor Style
  • HEI/Male Cap Terminal Style
  • 90° spark plug boot ends
  • 8mm diameter wire
  • No coil wire included

GM HEI Distributor Pigtail

This wiring pigtail features a dual HEI connector that helps clean up your engine bay by eliminating the use of single spade connectors to make battery and tachometer connections. 10 inch long wires that are red and green to identify battery and tachometer.

  • 10 inch length
  • Red and green wires to identify battery and tach leads
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • BluePrint Budget 355 Crate Engine
    Qty x 1
  • FiTech 30005 Easy Street EFI System, 600 HP
    Qty x 1
  • Moroso Ready to Install Plug Wires HEI/Under Header/Blk
    Qty x 1
  • GM HEI Distributor Wiring Pigtail Connector, 10 Inch
    Qty x 1
