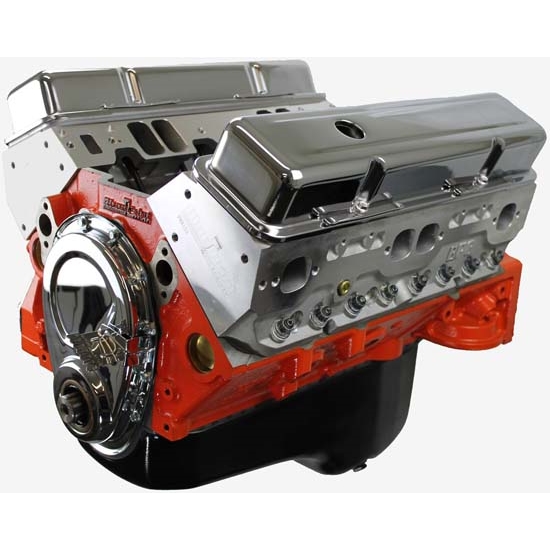

BluePrint BP4001CT1 GM 400, Base Engine, Alum Heads, Roller Cam
BluePrint BP4001CT1 GM 400, Base Engine, Alum Heads, Roller Cam

BluePrint BP4001CT1 GM 400, Base Engine, Alum Heads, Roller Cam

400 Chevy Small Block V8, 400 cu. in. Engine Displacement, Long Block Crate Engine Type

0 Reviews | 2 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
BluePrint BP4001CT1 GM 400, Base Engine, Alum Heads, Roller Cam
BluePrint BP4001CT1 GM 400, Base Engine, Alum Heads, Roller Cam
Zoomed In Image
We estimate this item will ship on or before December 31st.
Part # 227BP4001CT1
$5,025.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 30 business days for BluePrint Engines to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Horsepower:
460 horsepower
Torque:
470 ft./lbs.
Engine Displacement:
400 cu. in.
Crate Engine Type:
Long Block
Compression Ratio:
10.3:1
Camshaft Type:
Hydraulic Roller Tappet
Cylinder Head Material:
Aluminum
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Cast Steel
Camshaft Duration (@.050 in):
230° intake / 236° exhaust
Intake Manifold Included:
No
Distributor Included:
No
MFG. Part #:
BP4001CT1
Warranty:
30 month / 50,000 miles
Notes:
Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
Valve Covers Included:
Yes
Assembled:
Yes
Cylinder Heads Included:
Yes
Rear Main Seal Style:
1-piece
Oil Pan Included:
Yes
Timing Cover Included:
Yes
Water Pump Included:
No
Harmonic Balancer Included:
No
Flexplate Included:
No
Flywheel Included:
No
Air Cleaner Included:
No
Spark Plugs Included:
No
Spark Plug Wires Included:
No
Camshaft Included:
Yes
Camshaft Lift (in):
.544 intake / .555 exhaust
Block:
New BluePrint Cast Iron Block, 4 bolt main

Info

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

GM 400 - Base Engine - Aluminum Heads - Roller Cam

Overview

  • HP & Torque: 460 HP / 470 FT LBS
  • Compression Ratio: 10.3:1
  • Aluminum Heads
  • Hypereutectic Pistons
  • Roller Cam
  • Cast Steel Crank
  • Part #: BP4001CT1

Block

  • BRAND NEW BluePrint Cast Iron Block
  • 4 Bolt Mains
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders are sonic tested for thickness
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness

Rotating Assembly

  • New cast crankshaft
  • Cast 5.7" connecting rods
  • 150,000 psi rod bolts
  • Hypereutectic pistons
  • Hastings moly rings
  • Rotating assembly balanced to within 2 grams
  • High volume oil pump
  • Hydraulic roller cam
  • Roller lifters

Cylinder Heads

  • BluePrint aluminum - 64cc chamber
  • Hardened retainers and springs
  • 2.02 swirl polished intake valves
  • 1.60 swirl polished exhaust valves
  • BP Aluminum Head Part# H8002K

Cam Specs

  • Cam Type: Roller
  • .544 Intake .555 Exhaust
  • 230 Intake / 236 Exhaust duration
  • @ .050 - 110° lobe separation

Ignition Timing

  • 10-16 degree inital and total timing 32-34 degree at 3500 RPM

Also Includes

  • Valve covers, oil pan and timing cover
  • Brass freeze plugs
  • Dyno test results shipped with engine

Warranty

  • 30 month / 50,000 mile

Notes

NEW BluePrint block manufactured and machined in the USA! Not for EGR

Warranties

Warranty Information (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
