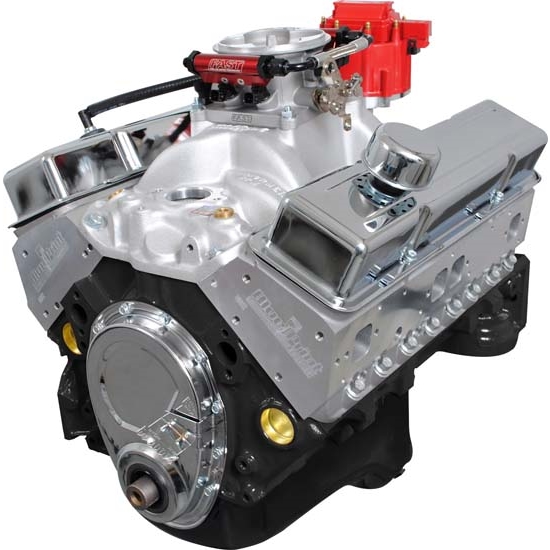

BluePrint BP38313CTF1 GM 383 Dressed Engine, Alum Heads, Roller Cam
350 Chevy Small Block V8, 383 Chevy Small Block V8, 383 cu. in. Engine Displacement
- This item ships directly from the manufacturer. It may take an additional 30 business days for BluePrint Engines to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!
GM 383 Dressed Engine - Aluminum Heads - Roller Cam
- HP & Torque: 430 HP / 450 FT LBS
- Compression Ratio: 10.0:1
- Aluminum Heads
- Roller Cam
- Cast Steel Crank
- Part #: BP38313CTF1
- 4 bolt main 1pc rear seal block w/Passenger side dipstick only
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
- New cast steel crankshaft
- Hypereutetic pistons
- Chevy heavy beam rods with 150,000 psi bolts
- Hastings Moly rings
- Balanced rotating assembly
- Melling high volume oil pump
- Roller camshaft
- Heavy duty double roller timing set
- BluePrint Performance aluminium
- Hardened retainers and springs
- 2.02 swirl polished intake valves
- 1.60 swirl polished exhaust valves
- BP Aluminum Head Part# H8002K
- Cam Type: Roller
- .528 Intake .536 Exhaust
- 221 Intake / 226 Exhaust duration
- @ .050 - 110 degree lobe separation
- 34 degrees total at 3500 RPM
- Aluminum intake manifold
- Fast EZ EFI Injection system
- Valve covers, Oil Pan and Timing Cover
- Brass freeze plugs
- Dyno tested “ and shipped with results
Recommended spark plugs are Champion 792 with .045" gap Not for use in pollution controlled vehicles.
Warranty Information (PDF)
